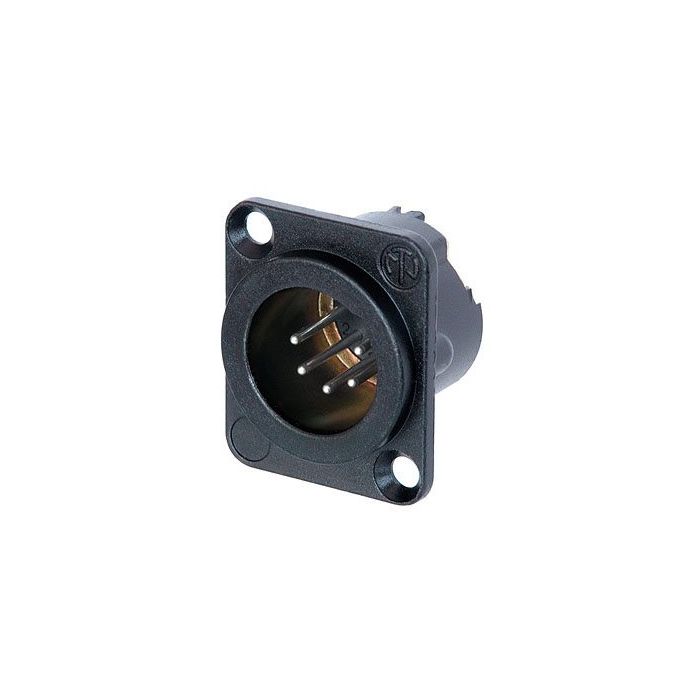

XLR 5 Pin Male Chassis Black Body NC5MD-LX-BAG

Neutrik

Part No
CONC5MDLXBAG
£9.41 £7.84
In stock
XLR 5 Pin Male Chassis Black Body

5 pole male receptacle
Solder cups
Black metal housing
Silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutriks EMC XLR cable connector.

Features & Benefits:

- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions

Priced per connector: available in any quantity
Packing information: box quantity = 100
Technical Information
Pole 5
Weight 40g
Contacts Silver
Finish Black Metal
Gender Male
