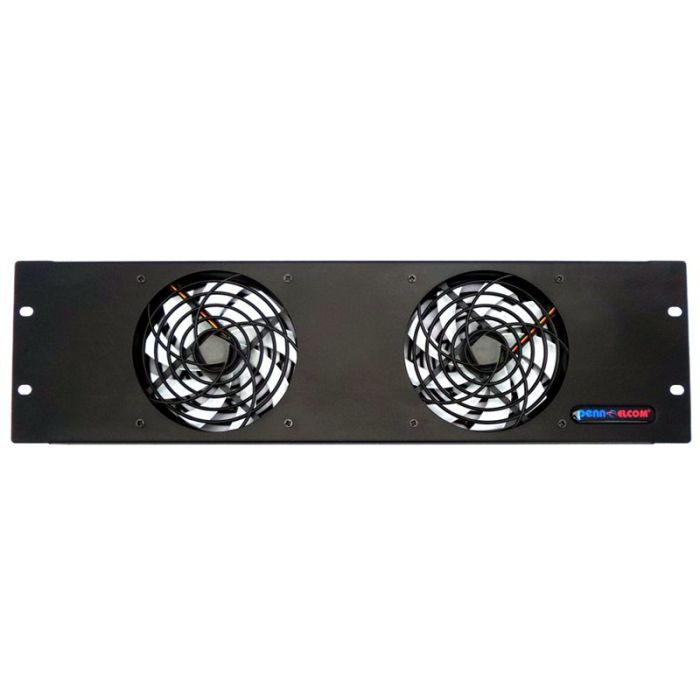

3U Low Noise Heat Extraction Unit with Two Fans
Part No
FP02-Q-3U
Was
$230.71
$230.71
Save: 13%
Was
$200.97
$200.97
Save: 13%
$200.97
$200.97
In stock
Low-noise 3U Heat Extraction Units are designed to be fitted into the front or back of a 19-inch rack to suck hot air out of an enclosure. As hot air rises the best results will be achieved by mounting them at the top of the cabinet.
A DC-DC link socket is provided, so two or more units can be linked together; a higher-power PSU must be used.
Each extractor can also be controlled by a CRC-TEMP thermal sensor.
Technical Specifications
• Low Noise 22.5dBA (0.3 Sone)
• Air movement: 200CFM @ 1,350RPM
• Dimensions: 19" x 5 1/4" x 2 2/16"
• 2 x 9 Bladed 4 3/4" Fans
• High Static Pressure
• Power: 12V DC – 500mA / 2 x DC In/Out Sockets
• 500mA universal PSU supplied
• Fluid Bearings = 2 Year Limited Warrantee
Available accessories: This CoolRaC can be controlled by our CRC-TEMP Standard Fixed 40°C (104°F) thermal sensor.
Or it can be Digitally Controlled with our FT-DTC 1U Rack Mounting Thermostatic Controller.
DC link cable: CRC-LINK
Use AF-F12 Magnetic Fan Dust Filter Covers.
| 3D Model | View 3D Drawing |
|---|---|
| Data Sheet | Data Sheet |
| Size (U) | 3U |
| Weight | 3.3lbs |
| Finish | Black |
