SpeakON 2 Pole Chassis D Flange NL2MPXX
Neutrik
Part No
CONL2MPXX
£3.19
£2.66
In stock

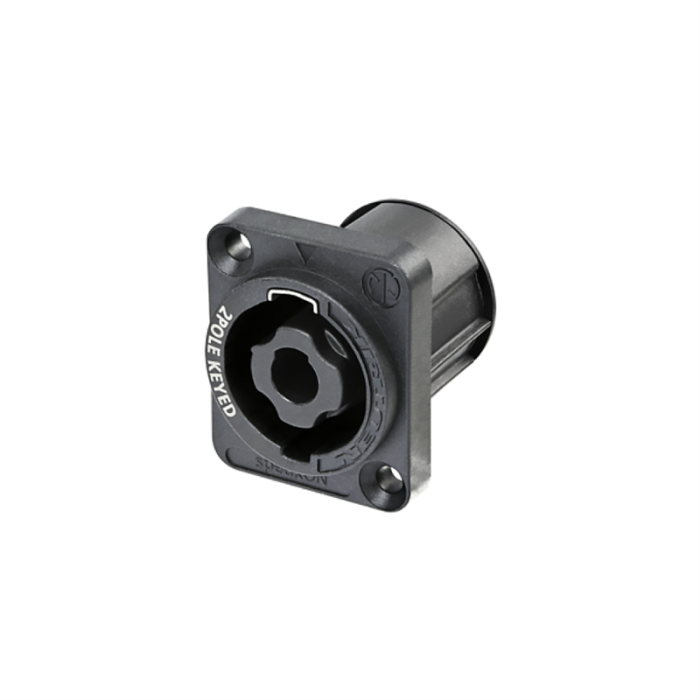

Neutrik 2 pole chassis connector - NL2MPXX
D-size flange.
Does not inter-mate with the 4-pole cable connector.
Compliance – IEC 62368-1
Rated current per contact: 30 Amp rms continuous
Rated current per contact: 40 Amp audio signal, uuty cycle 50 %
Dielectric strength: 4kV peak
Rated voltage: 250V (Insulation)
Wiring: flat tabs for 3/16in (FASTON 4.8 x 0.5 mm) or soldering
Priced per connector: available in any quantity
Packing information: Box quantity = 100
D-size flange.
Does not inter-mate with the 4-pole cable connector.
Compliance – IEC 62368-1
Rated current per contact: 30 Amp rms continuous
Rated current per contact: 40 Amp audio signal, uuty cycle 50 %
Dielectric strength: 4kV peak
Rated voltage: 250V (Insulation)
Wiring: flat tabs for 3/16in (FASTON 4.8 x 0.5 mm) or soldering
Priced per connector: available in any quantity
Packing information: Box quantity = 100
| Panel fastening | Countersunk thruholes |
|---|---|
| Pole | 2 |
| Termination | 3/16" flat tabs |
| Weight | 40g |
| Chassis | D-size flange |
| Finish | Black |
