Pack of 100 x Disassembled XLR 5 Pin Female Cables NC5FXX-D
Neutrik
Part No
CONC5FXXD
£976.80
£814.00
In stock
XLR 5 Pin Female Cable Disassembled Bulk Box

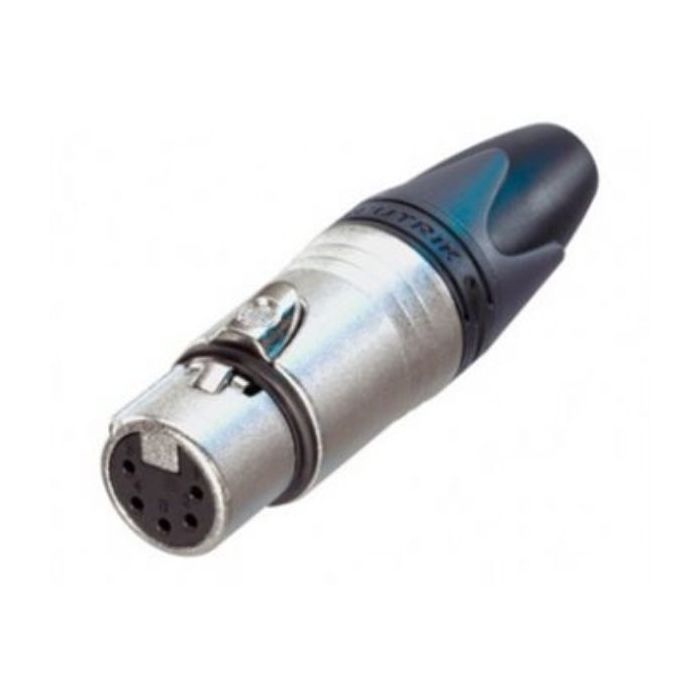

5 pole cable connector, female, nickel housing, silver contacts.
100 Piece Dispenser Box only available in multiples of 100
The next generation of the worldwide-accepted standard of XLR cable connector.
Features & Benefits:
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area.
- Additional ground spring contacts for better shell ground continuity.
- Internal thread on shell is well protected against any damage.
Technical Specifications:
- Rated current per contact: 7.5 A
- Rated voltage: 50 V
- Dielectric strength: 1.5 kV dc
- Cable O.D: 3.5 - 8.0 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel
- Coloured rings and boots available for coding or identification
SOLD ONLY IN MULTIPLES OF 100 PIECES
5 pole cable connector, female, nickel housing, silver contacts.
100 Piece Dispenser Box only available in multiples of 100
The next generation of the worldwide-accepted standard of XLR cable connector.
Features & Benefits:
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area.
- Additional ground spring contacts for better shell ground continuity.
- Internal thread on shell is well protected against any damage.
Technical Specifications:
- Rated current per contact: 7.5 A
- Rated voltage: 50 V
- Dielectric strength: 1.5 kV dc
- Cable O.D: 3.5 - 8.0 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel
- Coloured rings and boots available for coding or identification
SOLD ONLY IN MULTIPLES OF 100 PIECES
| Backshell | Black |
|---|---|
| Pole | 5 |
| Shell | Nickel |
| Weight | 3.9kg |
| Contacts | Silver |
| Gender | Female |
