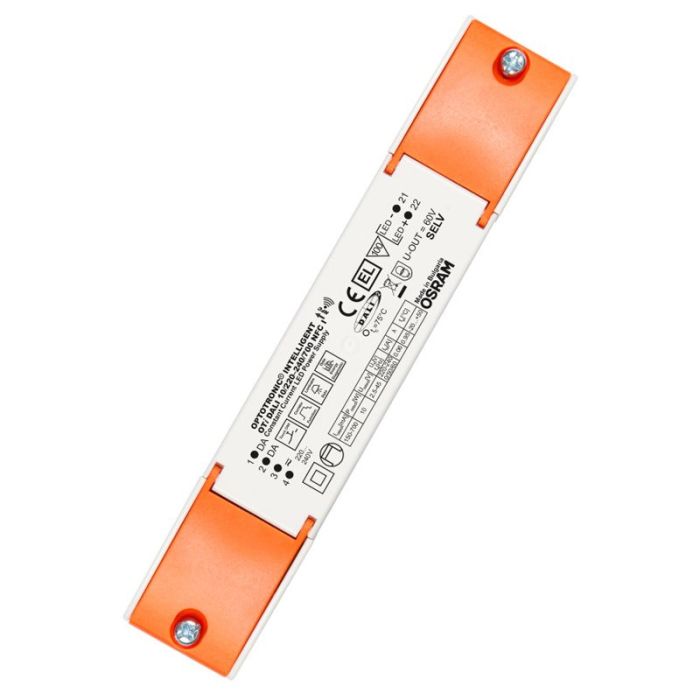

Led Oti Dali 10/220-240/700 NFC

Osram

Part No
LEDOTDALI10700NFCI
OPTOTRONIC Intelligent – DALI NFC LP I
EAN: 4062172151252

Product family benefits:
Small housing for flexible luminaire designs
Versatile DALI window driver due to flexible output characteristic
Easy and fast output current setting via NFC
Very high efficiency
High-quality dimming of 1…100 % by amplitude dimming
DALI-2 certified incl. Parts 251, 252, 253
Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor

Areas of application:
Suitable for downlights, spotlights and LED panels
Suitable for use in luminaires with flexible current setting
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for indoor SELV installations
Suitable for luminaires of protection classes I and II

Electrical data:
Nominal input voltage: 220...240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198...264 V
Input voltage DC: 176...276 V
Total harmonic distortion: 15 %
Power factor λ: > 0.98/> 0.94
Efficiency in full-load: 82 %
Device power loss: 3.5 W
Networked standby power: <=0.15 W
Inrush current: < 5 A
Max. ECG no. on circuit breaker 10 A (B): 80
Max. ECG no. on circuit breaker 16 A (B): 130
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 2.5...45 V
U-OUT (working voltage): 60 V
Nominal output current: 150...700 mA
Default output current: 350 mA
Output current tolerance: ±3 %
Output ripple current (100 Hz): < 2 %
Output PSTLM: <=1
Output SVM: <=0.4
Nominal output power: 10 W
Maximum output power: 10 W
Galvanic isolation: SELV
Current set: DALI / NFC

Dimensions & weight:
Mounting hole spacing, length: 132.0 mm
Product weight: 76.00 g
Cable cross-section, input side: 0.2...1.5 mm²
Cable cross-section, output side: 0.2...1.5 mm²
Wire preparation length, input side: 8.0...9.1 mm
Wire preparation length, output side: 8.0...9.1 mm
Height: 22.0 mm
Width: 30.0 mm
Length: 166.0 mm

Colors & materials:
Casing material: Plastic

Temperatures & operating conditions:
Ambient temperature range: -25 +50 °C
Maximum temperature at tc test point: 75 °C
Max.housing temperature in case of fault: 110 °C

Lifespan:
ECG lifetime: 50000 / 100000 h

Capabilities:
Dimmable: Yes
Dimming interface: DALI-2 / Touch DIM / Touch DIM Sensor
Dimming range: 1...100 %
Dimming method: Amplitude Modulation
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Intended for no-load operation: No
Max. cable length to lamp/LED module: 2.0 m
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Push terminal
Type of connection, output side: Push terminal
DALI-2 Diagnostic Data: Yes
Suitable for emergency lighting: Yes
DALI-2 Energy Data: Yes
Number of channels: 1
Programming interface: DALI, NFC
Constant lumen function:

Programmable:
Programming:
Box programming: Yes
Programming device: DALI / NFC
Tuner4TRONIC: Yes
Tuner4TRONIC Field App: No

Programmable features:
Emergency Mode: Yes
DALI-2 Luminaire Data: Yes
Configuration Lock: Yes
OEM Key: No
DALI Settings: Yes
Lamp Operating Time: Yes
Constant Lumen: Yes
Driver Guard: Yes
Soft Switch Off: Yes
Dim to Dark: Yes

Certificates & standards:
Approval marks - approval: ENEC / VDE-EMC / EL / CE / DALI-2
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 55015/Acc. to IEC 61547/Acc. to IEC 61000-3-2/Acc. to IEC 62384/Acc. to IEC 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1
Protection class: II
Type of protection: IP20

Logistical data:
Commodity code: 850440829000
Technical Information
Type of LED Driver Constant Current
Type of Control/Dimming Dali
Weight 3.53oz
