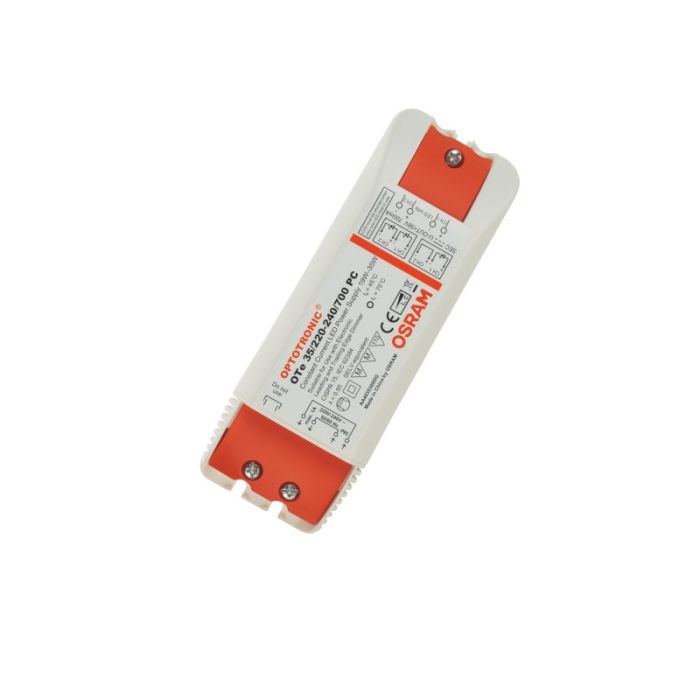

Led Driver Ote 35/220-240/700 Phasecut 4008321825520

Osram

Be the first to review this product

Part No

LEDOTE35700PC

Sales: +1 844 407 5188 Inquire / Order

Description

OTe 35/220-240/700 PC

Orange cable clamp included with the driver. This allows independent mounting of the driver.

EAN: 4008321825520

Product benefits:
Compact housing for mounting in very tight spaces
Compatible with the most common leading-edge and trailing-edge phase dimmers

Product features:
Dimmable via leading edge/trailing edge

Areas of application:
Optional cable clamp E-style for independent mounting (to be ordered separately)
Suitable for indoor installations

Electrical Data:

Nominal output power: 35 W
Partial load: 19 - 35 W
Input voltage AC: 198 - 264 V
Mains frequency: 50 - 60 Hz
Nominal output voltage: 27 - 50 V
Nominal output current: 700 mA (+/- 10%)
Nominal voltage: 220 - 240 V
Device power losses (max): 7.0 W
Power factor λ (full/minimum load at 230 V): 0.95/ 0.9
ECG efficiency (full load at 230 V): 85 %
Inrush current: < 10 A
Max. no. of ECGs on circuit breaker 10 A: 40
Max. no. of ECGs on circuit breaker 16 A: 65
Galvanic isolation primary/secondary (SELV equivalent): 3.75 kV
Surge capability (L-N): 1 kV
Length: 153 mm
Width: 54 mm
Height: 36 mm
Product weight: 165 g
Cable cross-section, input side: 0.75 - 2.5 sqmm (flexible/solid leads)
Cable cross-section, output side: 0.5 - 2.5 sqmm (flexible/solid leads)
Wire preparation length, input side: 5.0 mm
Casing material: Plastic
Ambient temperature range: -20 +45 C
Temperature range at storage: -40 +85 C
Maximum temperature at tc test point: max. +75 C
Max.housing temperature in case of fault: 110 C
ECG lifetime (at Tcase = 70 C at Tc point/10-% failure rate) : 50000 h
Dimmable: Yes
Dimming range: 10 - 100 %
Suitable for fixtures with prot. class: I / II
Dimming interface: Phase Cut (Leading edge/Trailing edge)
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Max. cable length to lamp/LED module: 2 m
Type of protection: IP20
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Approval marks - approval: CE / ENEC 10 / VDE / CB
