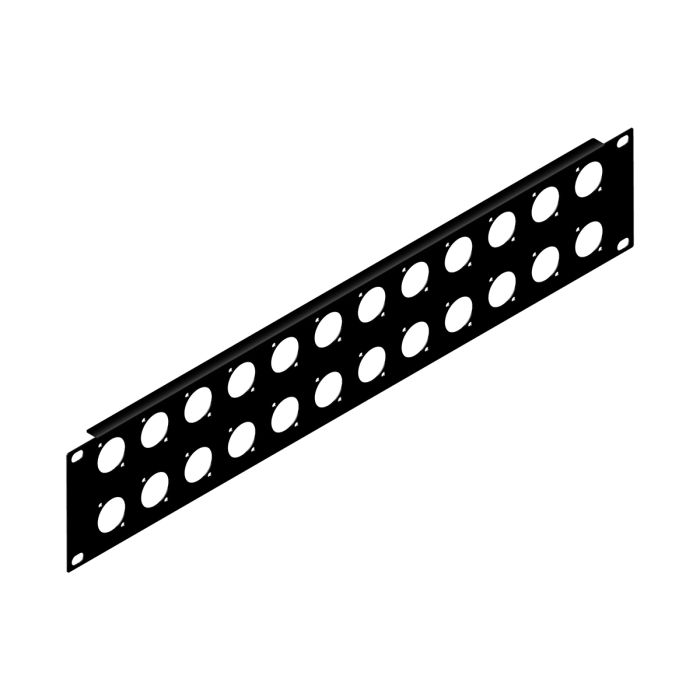

2U Rack Panels Punched for 24 x D-Series Connectors

Be the first to review this product

Part No

R1269/2UK/24

$27.33

In stock

Description

2U Rack Panels Punched for 24 x Neutrik D-Series Connectors (XLR, Speakon, RJ45, etc.)

Keep your electronics organized and structured.

For panels with ID Strips, view:

R1269ID/1UK/16

R2269/1UK-08

R2269/1UK-12

R2269/1UK-16

R2269-2UK-16

R2269-2UK-24

R2269-2UK-32

Technical Information

Technical Information

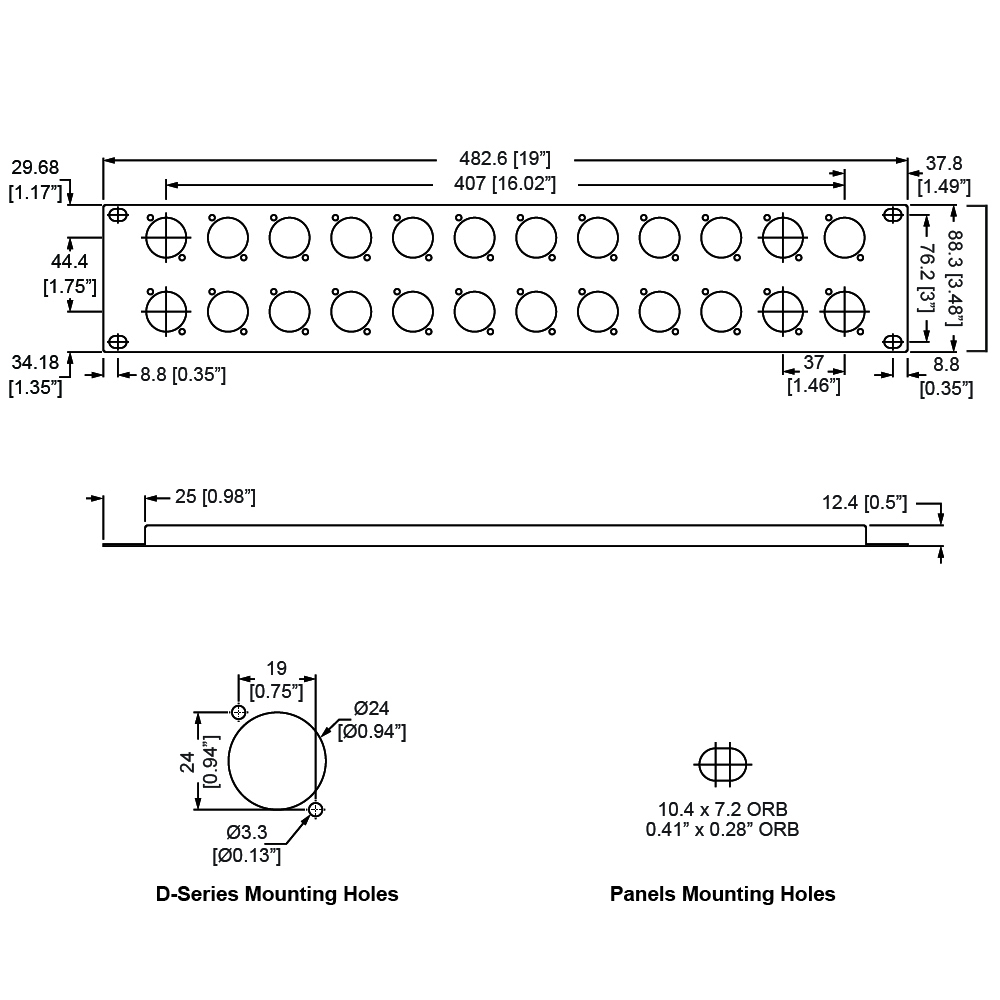

3D Model	View 3D Drawing
Number of Connectors	24
Material	3/64" Steel
Size (U)	2U
Weight	14.11oz
Connectors	D-Series
Finish	Black

Product Questions (2)

Customer Questions

I want to know if it's possible to have label for each holes?

Hi Martin, It is not possible to label the holes on this rack panel, however the R2269-2UK-24 panel comes with a laser bar and ID strip so that you can identify the individual connectors holes. Simply enter the product code R2269-2UK-24 into the search...

Hi could you tell me which screws I need to purchase from you to attach my neutrik XLRs to the panel? I bought the plasticite screws advertised below (HSA18) but they're far too small for this panel. Which ones will fit?

Thank you for your enquiry regarding the R1269/2UK/24, You will require the HSM3C12BP screws, along with the COMFD mounting frames for the connectors Kind Regards Penn Elcom

Did you find what you were looking for?

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

View All Punched Rack Panels

View All Rack Panels

View All 19 Inch Racking

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Price	Connectors	Size (U)	Number of Connectors
R1269/1UK/04 Price: $17.65 Connectors: D-Series Size (U): 1U U Size: Number of Connectors: 4 Drawing:	$17.65	D-Series	1U	4
R1269/1UK/06 Price: $17.65 Connectors: D-Series Size (U): 1U U Size: Number of Connectors: 6 Drawing:	$17.65	D-Series	1U	6
R1269/1UK/08 Price: $17.65 Connectors: D-Series Size (U): 1U U Size: Number of Connectors: 8 Drawing:	$17.65	D-Series	1U	8
R1269/1UK/12 Price: $17.65 Connectors: D-Series Size (U): 1U U Size: Number of Connectors: 12 Drawing:	$17.65	D-Series	1U	12
R1269/1UK/16 Price: $17.65 Connectors: D-Series Size (U): 1U U Size: Number of Connectors: 16 Drawing:	$17.65	D-Series	1U	16
R1269/2UK/16 Price: $27.33 Connectors: D-Series Size (U): 2U U Size: Number of Connectors: 16 Drawing:	$27.33	D-Series	2U	16
R1269/2UK/24 Price: $27.33 Connectors: D-Series Size (U): 2U U Size: Number of Connectors: 24 Drawing:	$27.33	D-Series	2U	24
R1269/2UK/32 Price: $27.33 Connectors: D-Series Size (U): 2U U Size: Number of Connectors: 32 Drawing:	$27.33	D-Series	2U	32
R1269/3UK/24 Price: $36.82 Connectors: D-Series Size (U): 3U U Size: Number of Connectors: 24 Drawing:	$36.82	D-Series	3U	24

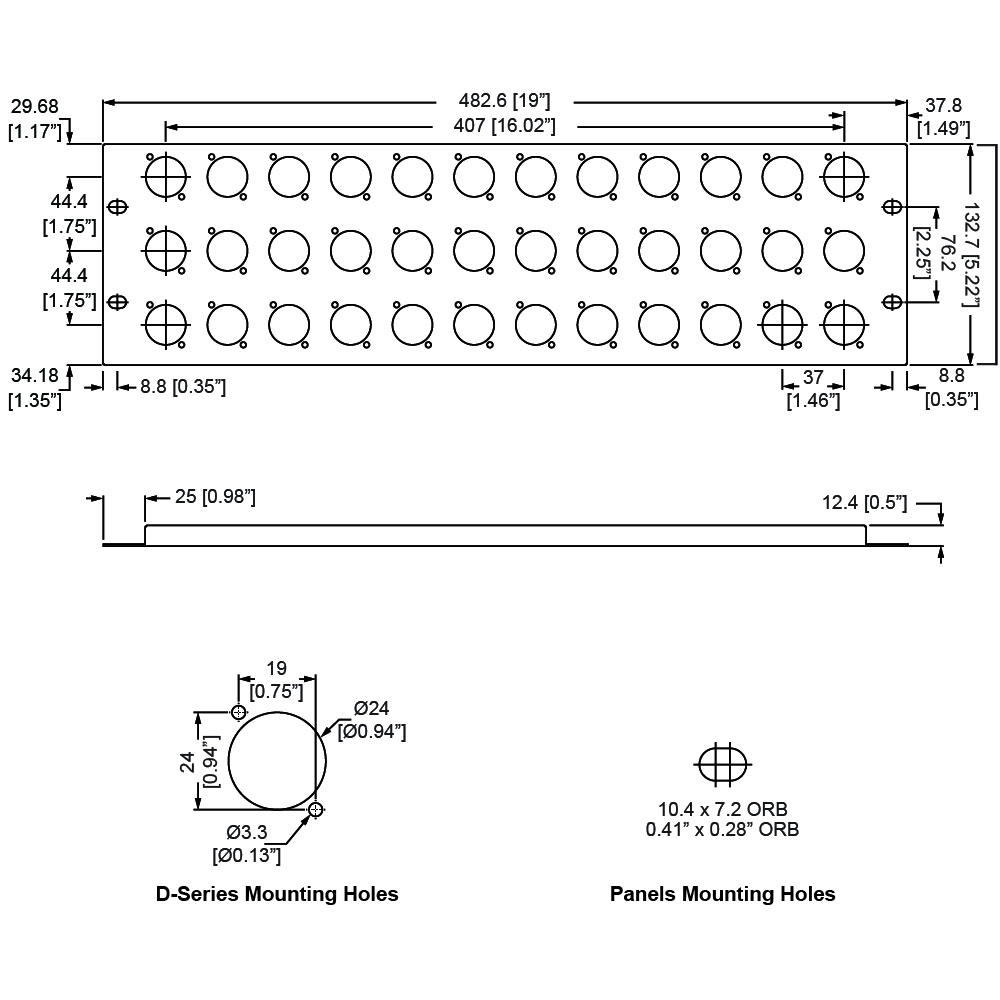

R1269/3UK/36 Price: $36.82 Connectors: D-Series Size (U): 3U U Size: Number of Connectors: 36 Drawing:	$36.82	D-Series	3U	36

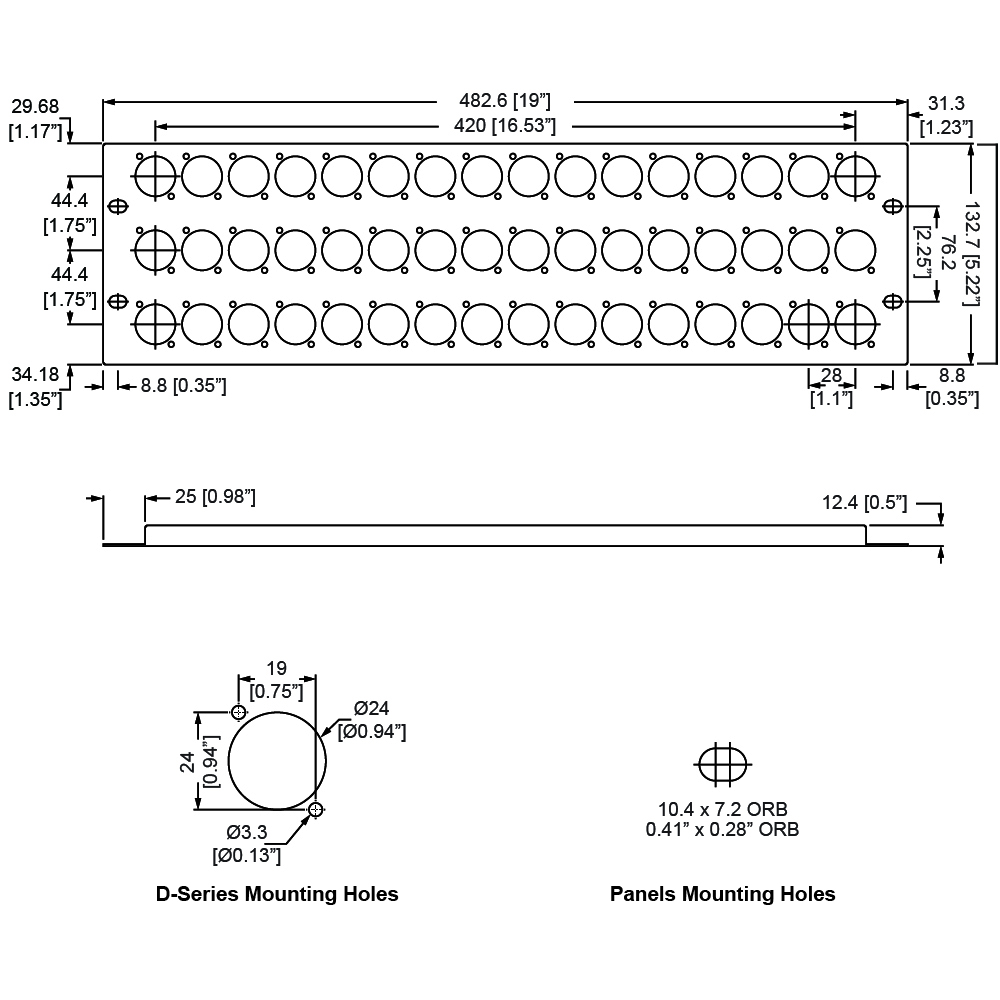

R1269/3UK/48 Price: $36.82 Connectors: D-Series Size (U): 3U U Size: Number of Connectors: 48 Drawing:	$36.82	D-Series	3U	48
R1269ID/1UK/16 Price: Was $18.95 $18.95 Save: 11% Was $16.95 $16.95 Save: 11% Now $16.95 $16.95 Connectors: D-Series Size (U): 1U U Size: Number of Connectors: 16 Drawing:	Was $18.95 $18.95 Save: 11% Was $16.95 $16.95 Save: 11% Now $16.95 $16.95	D-Series	1U	16
