Mic Multicore Cable 24 Pair AES-EBU Black for DMX & Analogue 04007118

Part No
CAUNC24
£19.86 £16.55
In stock

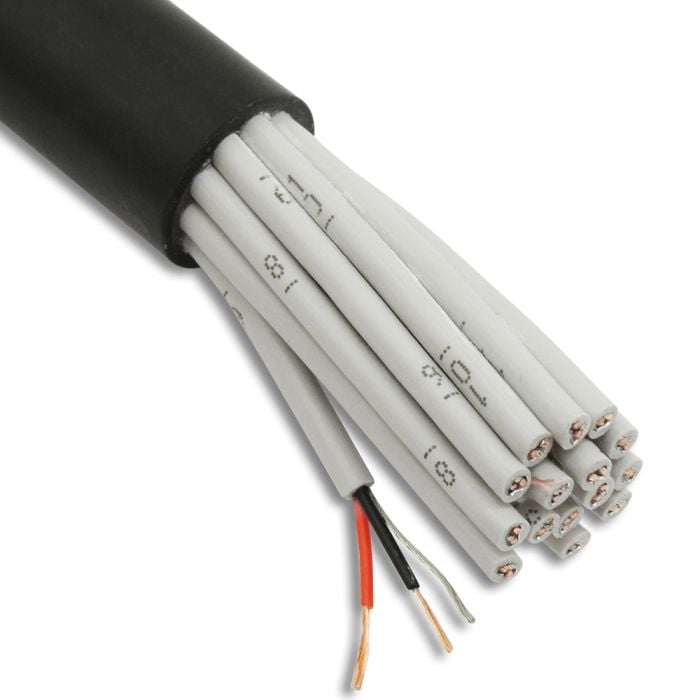

Penn Elcom Mic Multicore Cable 24 Pair AES-EBU Black for DMX & Analogue


Penn Elcom unified oxygen free copper (OFC) multi-pair cable available in 2, 4, 8, 12, 16 & 24 cores.

Numbered single pair & screen with Quick Strip allows both the jacket and foil screen to be stripped simultaneously, saving time in house or on site.

This cable is the perfect choice for touring & install applications. It offers superb performance and reliability for both analogue and digital signals.

Free sample packs available upon request. All cable is priced per metre and price breaks are available for bulk quantities.

PRICED PER METRE


Specifications

Diameter: 13.00 mm + - 0.40mm
Impedance: Approx. 105 Ohm at 1Mhz
Insulation: Foam-Skin PE (02YS)
Insulation Resistance: Minimum 100MOhm x km at 20°C
Operating Voltage: Maximum 50-75 Volts AC/DC
Capacitance: C/Capprox 40pF/m @ 1kHz
Conductor: Stranded copper wire 18x0.10mm=0.14mm AWG 26 bare
Conductor Resistance: max 138Ohm/kmat 20 degrees centigrade
Drain Wire: Stranded copper tin plated 7 x 0.16mm= 0.14mm2 AWG 26
Colour: Black
Jacket: Soft PVC
Pair Shield: Alu/PVC foil metal inside
Sheath: PVC colour grey
Temperature Range: -20 to 70° C
Twisting: 2 cores to a pair (24 pairs)
Technical Information
Weight 800g
Finish Black
Customer Questions
Hi, is the price stated per meter?
Thank you for your enquriy, Yes this priced per meter / 3.28 feet Regards PennElcomOnline
