Led Oti Dali 75/220-240/700 D Nfc Tw L 75w 4052899990326
Osram
Part No
LEDOTIDALI75TWL
£39.36
£32.80
In stock
OPTOTRONIC Intelligent Tunable White - Dimmable DALI

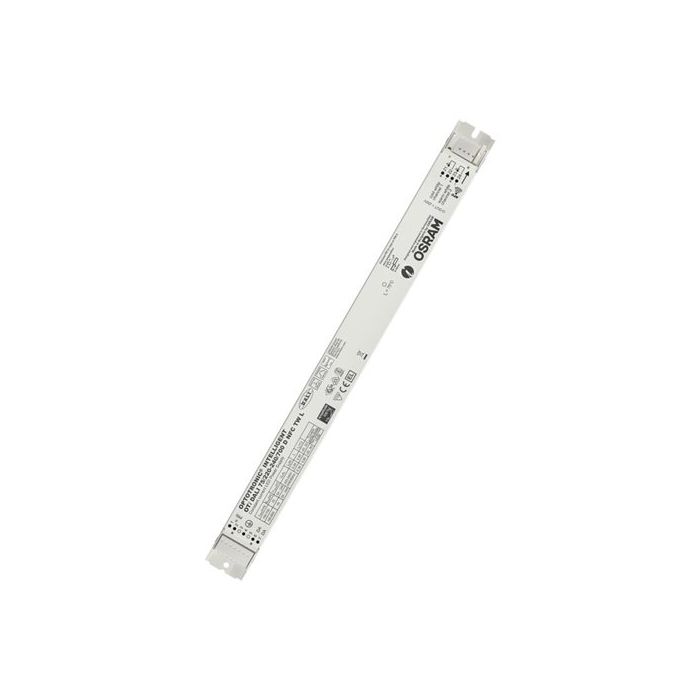

OTi DALI 75/220-240/700 D NFC TWL
Optimal LED solutions for Tunable White and HCL applications in offices and industrial facilities – the new OTi DALI D NFC TW L in 35 and 75 W seamlessly combine maximum functionality, excellent lighting quality and versatile usability in proven OSRAM quality.
The new OPTOTRONIC INTELLIGENT OTi DALI D NFC TW L in 35 and 75 W are simply ideal for Tunable White and HCL lighting in office and industrial applications.
These two non-isolated drivers provide simple and cost-efficient solutions for appealing Tunable White and HCL lighting.
In addition to the DALI DT8 Tunable White functions, they can be operated as 2-channel drivers in DT6 mode (e.g. for direct/indirect lighting).
The drivers seamlessly combine excellent lighting quality, high reliability , highly flexible module use with NFC as well as DALI programming (all TW functions simply programmable via Tuner4TRONIC).
For lighting control, select depending on your application:
DALI MCU TW – Intuitive manual dimming, switching and color temperature setting 4052899465916
DALI ACU BT – Intuitive manual dimming, switching and color temperature setting, lighting control app connected via Bluetooth 4052899544819
DALI ECO BT – Intuitive manual dimming, switching and color temperature setting, lighting control app connected via Bluetooth, simplified commissioning thanks to pre-defined function modes 4052899988781
DALI Pro – Control of up to 1,024 DALI ECGs via LAN connection, simple and intuitive control via app 4008321710871
Product features:
Line frequency 0 Hz / 50 Hz / 60 Hz
Versatile DALI window driver up to 75 W due to flexible output characteristic
Supply voltage 220-240 V
Usable as DT6 (2-channel) or DT8 (Tunable White) driver
Available with output current range up to 700 mA
Constant Lumen Output (CLO)
Integrated customizable thermal management (Driver Guard)
Non-isolated drivers
DALI-2 certified (Part -101,-102 and -207)
Product benefits:
Control of standard white or Tunable White light acc. DALI device type 8 (DT8)
TouchDIM Tunable White integrated for use without additional LMS (planned for end of 2018)
Fully programmable via software (DALI Interface, NFC)
Lifetime up to 100,000 h (temperature at Tc = 65 C, max. 10 % failure rate)
High-quality dimming of 1-100 % (amplitude and/or PWM selectable by software)
High quality of light thanks to <1% output ripple current
Very high efficiency
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Versatile scope of application due to OSRAM DALI Technology:
Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance
Areas of application:
For Tunable White as well as for 2-channel use (e.g. direct/indirect lighting)
Linear lighting for office, education, industry, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Suitable for luminaires of protection class I
Perfect system match with PrevaLED Linear Tunable White
EAN: 4052899990326
Nominal input voltage: 220-240 V
Mains frequency: 50-60 Hz
Input voltage AC: 198-264 V
Input voltage DC: 176-276 V
Current set: DALI / NFC / Programmable
Total harmonic distortion: < 10 %
Power factor: > 0.95
ECG efficiency: up to 91 %
Device power loss: 6 W
Power loss in stand-by mode: <0.2 W
Inrush current: 23 A
Max. ECG no. on circuit breaker 10 A (B): 13
Max. ECG no. on circuit breaker 16 A (B): 19
Max. ECG no. on circuit breaker 25 A (B): -
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 50-240 V
U-OUT (working voltage): < 250 V
Nominal output current: 125-700 mA
Output current tolerance: +/- 3 %
Output ripple current (100 Hz): < 1 %
Nominal output power: 8.1-75 W
Galvanic isolation: Non isolated
Length; 360.0 mm
Width: 30.0 mm
Height: 21.0 mm
Mounting hole spacing, length: 350.0 mm
Product weight: 260 g
Cable cross-section, input side: 0.5 - 1.5 sqmm
Cable cross-section, output side: 0.5 - 1.5 sqmm
Wire preparation length, input side: 8.5-9.5 mm
Wire preparation length, output side: 8.5-9.5 mm
Casing material: Metal
Ambient temperature range: -25 +50 C
Maximum temperature at tc test point: 75 C
Max.housing temperature in case of fault: 110 C
Permitted rel. humidity during operation: 5-85 %
ECG lifetime: 50000 / 100000 h
Programming interface: DALI, NFC
Dimmable: Yes
Dimming interface: DALI / Touch DIM / Touch DIM Sensor
Dimming range; 1-100 %
Dimming method: DALI / TouchDIM / TouchDIM Sensor
Constant lumen function: Yes
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
No-load proof: Yes
Max. cable length to lamp/LED module: 2.0 m
Suitable for fixtures with prot. class: I
Suitable for emergency lighting: Yes
Number of channels: 2
Operating Current: Yes
Tuning Factor: Yes
Constant Lumen: Yes
Lamp Operating Time: Yes
Thermal Protection: No
Driver Guard: Yes
DALI Settings: Yes
Emergency Mode: Yes
Luminaire Info: Yes
Configuration Lock: Yes
Soft Switch Off: Yes
Dim to Dark: Yes
TouchDIM + Sensor: Yes
Corridor Functionality: Yes
Tunable White CCT: Yes
Tunable White High precision: Yes
Approval marks – approval: CE / EL / VDE-ENEC / VDE-EMC / CCC / RCM
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Type of protection: IP20
Temperature range at storage: -40 +85 C
Commodity code: 850440829000
| Weight | 275g |
|---|
