Led Linearlight Flex Low Power lf500-g1-830-10 10m/reel 3k warm white 24v 4052899575196

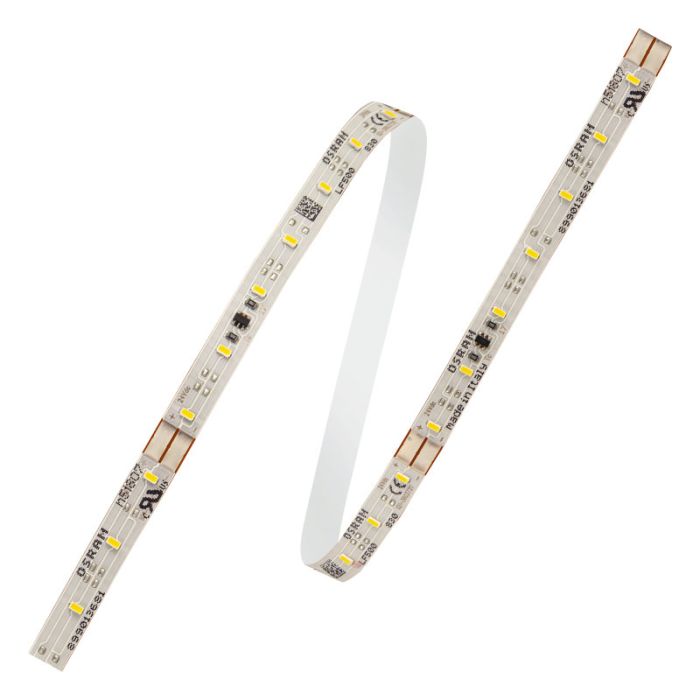

LINEARlight Flex Low Power 500 1st Generation
LF500-G1-830-10

The best solution for amazing decorative lighting

Available accessories:
Product family benefits & features:

Luminous flux up to 520 lm/m
Color uniformity ≤2 SDCM*
Lifetime up to 60.000 h L80B10 at Tp
CRI 90 and 80 options
Internal constant current regulator
LM80 & LM79 compliant
High light quality and large selection of light color temperatures
Dimmable by OPTOTRONIC® LED drivers
Great design freedom thanks to flexibility and cuttability of the LED strip
Toolless connection with the optional SLIMCONNECTsystem G2
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Reel-to-Reel technology
Made in Italy
5 yrs warranty

Areas of application:

Decorative Lighting, Path lighting
For high-end application with dedicated equipment and accessories

Technical data:

EAN: 4052899575196
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 3.9 W
Rated wattage: 39.00 W
Input voltage range: 23-25 V
Accidental reverse input voltage protection up to: 25 V
Light color LED: White
Color temperature: 3065 K
Color rendering index Ra: >= 80
Luminous flux per meter: 520 lm
Total useful luminous flux: 5200 lm
Luminous efficacy: 133 lm/W
Standard deviation of color matching: <= 3 sdcm
Light color (designation): White
LED pitch: 8.33 mm
Beam angle: 120 Deg
Rated beam angle (half peak value): 120.00 Deg
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s
Number of LEDs per meter: 70
Number of LEDs per smallest unit: 7
Length: 10000 mm
Length   smallest unit: 50.0 mm
Width: 8.00 mm
Height: 1.40 mm
Product weight: 71.8 g
Performance temp. acc. to IEC 62717: 35 C
Temperature range in operation at Tc point: -30 +75 C
Ambient temperature range: -30 +50 C
Temperature range at storage: -40 +85 C
Rated lamp life time: 60000 h
Nominal lamp life time; 60000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles: 15000
Dimmable: Yes
Lowest bending radius: 20 mm
Self-adhesive: Yes
With connection set: Yes
With end piece: No
Energy efficiency class: A++
Energy consumption: 43 kWh/1000h
Standards: CE; ENEC 10 VDE/EAC/UL Recognized component according UL 8750
Type of protection: IP00
Commodity code: 940540399000
