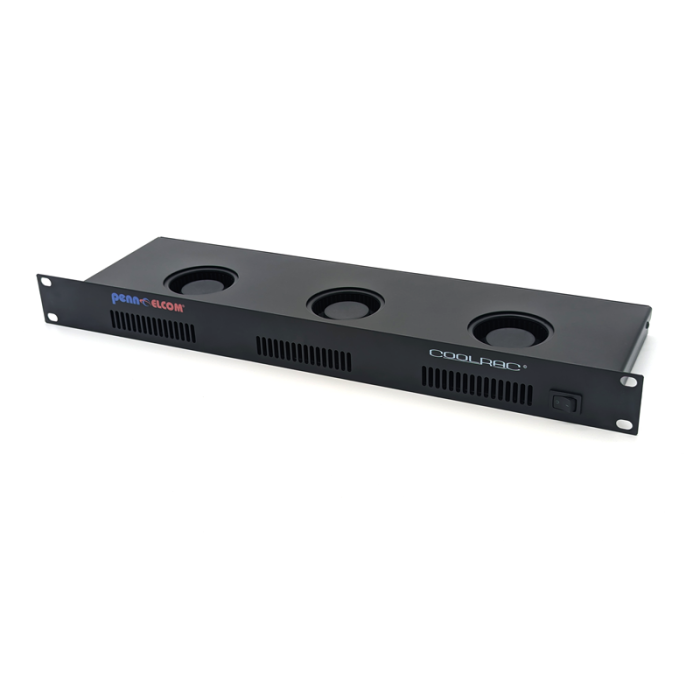

1U Black CoolRac Quiet Hot Air Extraction Unit

Be the first to review this product

Part No

COOLRAC-B

€525.08 €437.57

In stock

Description

1U Black CoolRac Quiet Hot Air Extraction Unit with 3 miniature blowers to expel heat from any 19” equipment racks.

Behind the 1U Escutcheon, the ergonomic 0.5U space design allows for the CoolRaC to be placed in between layers of equipment to pull heat directly away from the gear.

Technical Specifications
- Noise Level: 22 - 38dBA
- Power: 12V DC - 420mA
- Air movement: 120 CFM
- 1A Universal PSU included.
- Black Powder Coated
- 1mm Steel Construction

Available accessories: This CoolRaC can be controlled by our CRC-TEMP Standard Fixed 40°C (104°F) thermal sensor.
Or it can be Digitally Controlled with our FT-DTC 1U Rack Mounting Thermostatic Controller.
DC link cable: CRC-LINK

Technical Information

Technical Information
3D Model	View 3D Drawing
Data Sheet	Spec Sheet
Size (U)	1U
Weight	1.83kg
Finish	Black

Q&A (7)

Customer Questions

Does the 1U CoolRac come with a power supply?

Yes this product comes with a universal power supply.

What is the air flow rate through the unit?

Thank you for the question, this COOLRAC-B unit moves 120 CFM

Hi, what is the width of this product? Seem to be unable to download the data sheet. Many thanks, Jim

Thank you for your enquiry. We can confirm the COOLRAC-B conforms with 19" international standards the overall width is 482.6mm / 19.00" height is 44.45mm / 1.75" Have a nice day Penn Elcom

Hi Can this unit be mounted at the top of an effects rack to expel hot air or does it need space at the top for circulation? Many thanks, Chris.

Thanks for the question. Yes this fan unit could be mounted at the top of the rack to expel air.

hi. do you know the power consumption of this unit in watts and btu?

Thank you for your enquiry about the COOLRAC-B, Total 450mA = 5.5W Total CFM = 126 BTU is a unit of heat this does not apply to this unit. Kind Regards Penn Elcom

What is the COOLRAC noise level in dBA?

Thank you for your enquiry, The COOLRAC-B Noise Level is 22 - 38dBA Kind Regards Penn Elcom

Which direction does the air flow; in through the front or out the front?

The COOLRAC-B is an exhaust blower, so it takes the air in from the top and blows it out through the front. Please let us know if you have any more questions.
