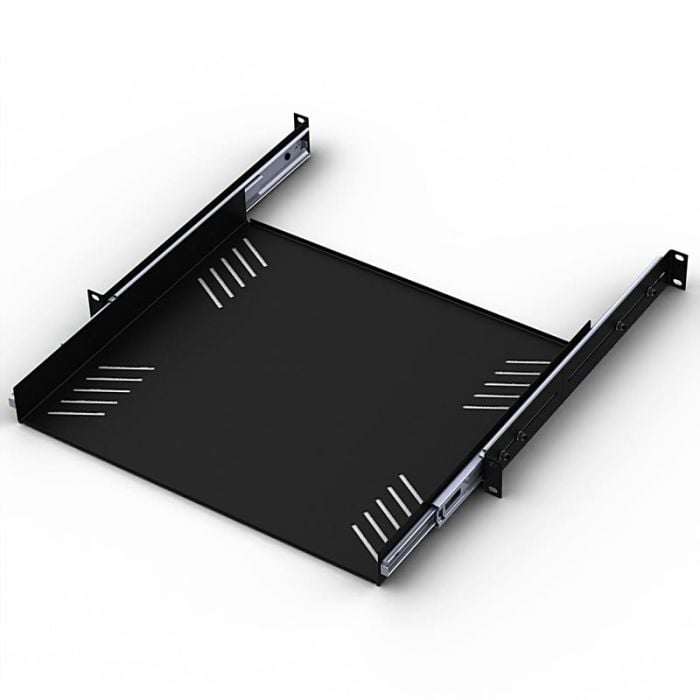

1U Black 380mm Deep Sliding Rack Tray with Universal Fixing

Be the first to review this product

Part No

R1290/1U

€99.52 €82.93

In stock

Description

1U Black 380mm Deep Sliding Rack Tray with Universal Equipment Fixing Points.

Recommended Load Capacity 19Kg

Technical Information

Technical Information
3D Model	View 3D Drawing

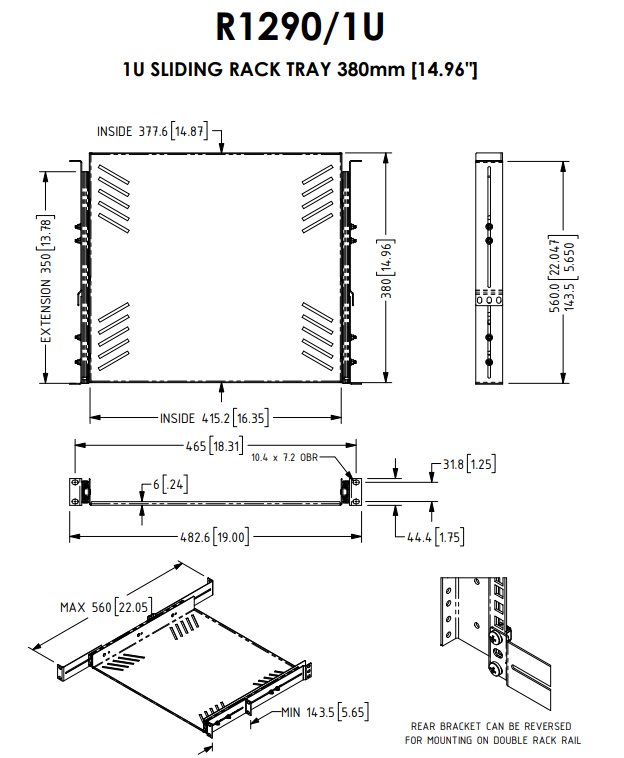

Data Sheet	Drawings
Load Capacity	19kg
Material	1.2mm Steel
Weight	2.67kg
Depth	38cm
Finish	Black

Q&A (15)

Customer Questions

What is the actual inside dimensions of the sliding shelf? The area where a component would reside and be mounted to the fixing slots,

The inside dimensions of the R1290 is 16.34" / 415mm.

What keeps it from sliding out during transport? Any type of locking mechanism? Latch?

The R1290/1U runners have a soft close mechanism that holds the tray in place, but it does not complete lock the tray in place during transport

How much does this product weigh....out of the shipping box? Cheers David Ray Ritchie

Hi R1290/1U Product weight is 2.1kg / 4.63lbs Many Thanks Penn Elcom

R1290/1U product weight, please.

Product weight is : 3.104KG

What is the overall depth of the shelf? Trying to determine how shallow of a rack it would fit in.

The overall depth of this rack tray is: 380mm / 14.96"

Is this a 2 Post or a 4 post unit

thank you for your question This R1290/1U has been designed to work with 4 rack rails Regards Penn Elcom

I saw you mentioned that this will work without the rear rack mountings but this will reduce the load capacity - by how much? I'm considering using this for effect pedals which all told would be probably less that a total of 10 pounds. Thanks!

Thank you for your enquiry. The Recommended Load Capacity for R1290/1U is 19kg/41.89lb Kind Regards Penn Elcom

Hi, just wondering, because it doesn't say on your specification, I would assume that it is for a 19" rack right? Thanks!

Thank you for your enquiry, We can confirm this R1290/1U unit is for 19" rack enclosures Regards Penn Elcom

What is the minimum mounting depth for this product? The rear mounting posts on my rack are 13 inches deep. Will this fit my rack that is 19”x 13”?

Thanks for the question. The minimum mounting depth for R1290/1U is 14.5".

Is it possible to have a version of R1290/1U where the shelf depth is 250mm only. I am trying to build a shallow rack and I need 2 such sliding shelves 250 mm deep.

Thank you for your enquiry, We offer a custom manufacturing service, please e-mail you requirement to [email protected] and we will review and advise Regards Penn Elcom

Will a 19” keyboard fit?

Thank you for your enquriy, The internal dimension of the shelf is 417.6mm / 16.44" Regards PennElcomOnline

Will a 19” keyboard fit?

Thank you for your enquriy, The internal dimension of the shelf is 417.6mm / 16.44" Regards PennElcomOnline

I have a server rack of 42U 600mm x 600mm, can this R1290/1U tray fit into this rack?

Thank you for your enquiry, The product is a standard 19" rack mount sliding shelf. The rack ears depth extends from 370mm / 14.5" to 560mm / 22" Regards Penn Elcom

What is the country of origin of this product?

Thank you for your enquiry, This R1290/1U origin is the United Kingdom Regards Penn Elcom

Was is the depth of the tray surface when fully extended?

Thank you for your enquiry, This R1290/1U unit extends the full depth of the tray which is 380mm / 14.96" Regards Penn Elcom

Did you find what you were looking for?

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

You're reviewing:1U Black 380mm Deep Sliding Rack Tray with Universal Fixing

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

View All Sliding Rack Shelves

View All Rack Shelves

View All 19 Inch Racking

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Drawing	Price	Depth	Load Capacity	Quantity/Add to Cart
R1290/1U Price: €99.52 €82.93 Depth: 38cm Load Capacity: 19kg Drawing:		€99.52 €82.93	38cm	19kg

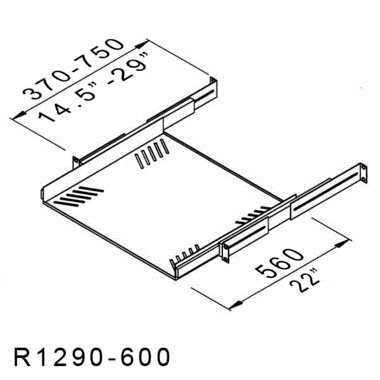

R1290-600/1UK Price: €130.97 €109.14 Depth: 56cm Load Capacity: 19kg Drawing:		€130.97 €109.14	56cm	19kg

1U Black 380mm Deep Sliding Rack Tray with Universal Fixing

FULL RANGE - 1U Sliding Rack Trays with Universal Equipment Fixing Points
