Electric Height Adjustable Workbench

Part No
RAFT-1
£563.22 £469.35
In stock

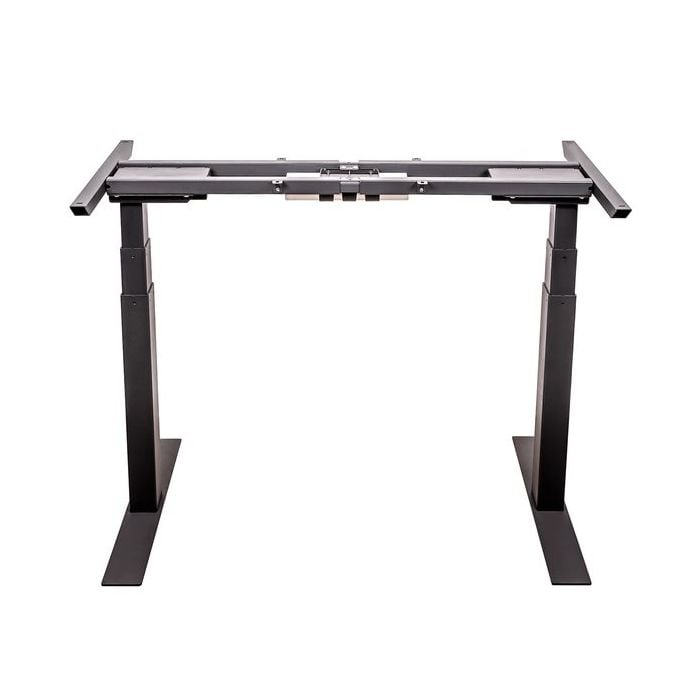

This electric motor driven height adjustable desk frame makes an excellent upgrade to static workbenches. Supplied as frame-only, fixing a suitable after-market surface is simple with the included instructions.

Powerful twin motors let users easily adjust their working height whenever required so less efficient methods such as employing a combination of risers, chairs and standing can be eliminated. By changing the height of the desk itself, productivity and ergonomic health are immediately improved.

Designed for heavy-duty use, the RAFT-1 is ideal for use in assembly areas, light engineering facilities, commercial laboratories, and offices. Built with premium features like triple barrel telescopic legs driven by a quiet double motor and built-in anti-collision and overload cutoff.

User functionality offers an LCD display and soft-touch input buttons for incremental up & down adjustment and two programmable positions to save in the memory.

Features
 - Height range: from 640mm to 1290mm
 - Width range: from 1100mm to 1600mm
 - Maximum dynamic load capacity: 120kg
 - Maximum static load capacity: 140kg
 - Motor speed: 30mm per second / 1.2" per second
 - Anti-collision safety: Yes
 - Motor overheat safety: Yes
 - Motor overload safety: Yes
 - Input Voltage: 100-240Vac 50/60Hz Input current = 3A
 - Output Voltage: 24V DC, Max.6A
 - Duty cycle: 10% MAX 2 min on 18 min off
 - Switch power supply
 - Motor volume: 38db
 - Low energy consumption
Technical Information
Weight 45kg
Finish Black
Customer Questions
What are the dimensions of the RAFT-1please? Is there some drawings? I need a 3M wide desk that is adjustable in height.
Thank you for your enquiry, These can span from 1100mm / 43.31" too 1600mm x 62.99" Kind Regards Penn Elcom
