XLR 6 Pin Female Cable NC6FXX
Neutrik
Part No
CONC6FXX

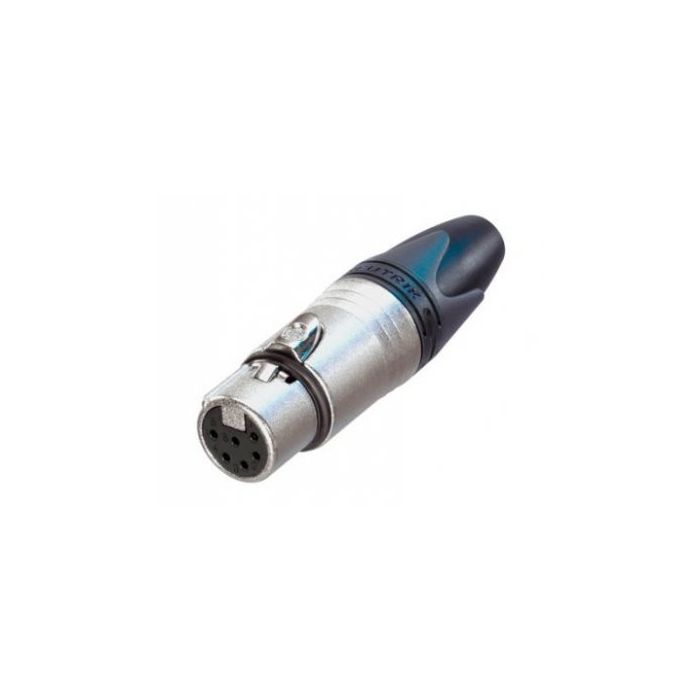

XLR 6 Pin Female Cable
6 pole cable connector, female, nickel housing, silver contacts. Female contact incorporates a solder barrier to prevent solder running into the contact mating area.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features & Benefits:
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc die-cast shell, long lasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Specifications:
- Rated current per contact: 7.5 A
- Rated voltage: 50 V
- Dielectric strength: 1.5 kV dc
- Cable O.D: 3.5 - 8.0 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel
Priced per connector: available in any quantity
Packing information: Box quantity = 100
Coloured rings and boots available for coding or identification
6 pole cable connector, female, nickel housing, silver contacts. Female contact incorporates a solder barrier to prevent solder running into the contact mating area.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features & Benefits:
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc die-cast shell, long lasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Specifications:
- Rated current per contact: 7.5 A
- Rated voltage: 50 V
- Dielectric strength: 1.5 kV dc
- Cable O.D: 3.5 - 8.0 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel
Priced per connector: available in any quantity
Packing information: Box quantity = 100
Coloured rings and boots available for coding or identification
Backshell | Black |
---|---|
Pole | 6 |
Shell | Nickel |
Weight | 40g |
Contacts | Silver |
Gender | Female |
