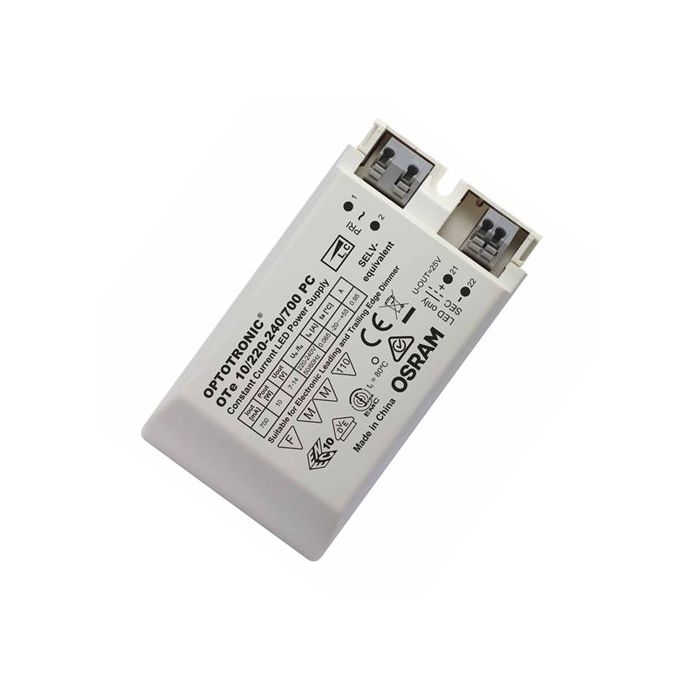

Led Driver Ote 10/220-240/700 Phase Cut 4052899105300

OTe 10/220-240/700 PC

Optional orange cable clamp E-style for independent mounting to be ordered separately

Product benefits:
Compact housing for mounting in very tight spaces
Compatible with the most common leading-edge and trailing-edge phase dimmers

Product features:
Dimmable via leading edge/trailing edge

Areas of application:
Suitable for indoor installations

EAN: 4052899105300
Nominal output power: 10 W
Partial load: 5 - 10 W
Input voltage AC: 198 - 264 V
Mains frequency: 50 - 60 Hz
Nominal output voltage: 7 - 14 V
Nominal output current: 700 mA (+/- 10%)
Nominal voltage: 220 - 240 V
Device power losses (max): 2.8 W
Power factor (full/minimum load at 230 V): 0.95/ 0.9
ECG efficiency (full load at 230 V): 79 %
Inrush current: 5 A
Max. no. of ECGs on circuit breaker 10 A: 110
Max. no. of ECGs on circuit breaker 16 A: 160
Galvanic isolation primary/secondary (SELV equivalent): 3.75 kV
Surge capability (L/N-Ground): 1 kV
Surge capability (L-N): 1 kV
Length: 95 mm
Width: 53 mm
Height: 25 mm
Product weight: 100 g
Cable cross-section, input side: 0.75 - 1.5 sqmm (flexible/solid leads)
Cable cross-section, output side: 0.5 - 1.5 sqmm (flexible/solid leads)
Wire preparation length, input side: 8.0 - 9.0 mm
Casing material: Plastic
Ambient temperature range: -20 +55 C
Temperature range at storage: -25 +75 C
ECG lifetime (at Tcase = 70 C at Tc point/10-% failure rate) : 50000 h
Dimmable: Yes
Dimming range: 10 - 100 %
Suitable for fixtures with prot. class: I / II
Dimming interface: Phase Cut (Leading edge/Trailing edge)
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Max. cable length to lamp/LED module: 2 m
Type of protection: IP20
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Approval marks - approval: CE / ENEC 10 / VDE / CB
