Large PennBrite Female Stackable Ball Corner with 1/32" Radius

Be the first to review this product

Part No

C1353/00/R5

Sales: +1 519 737 9494 Enquire / Order

Description

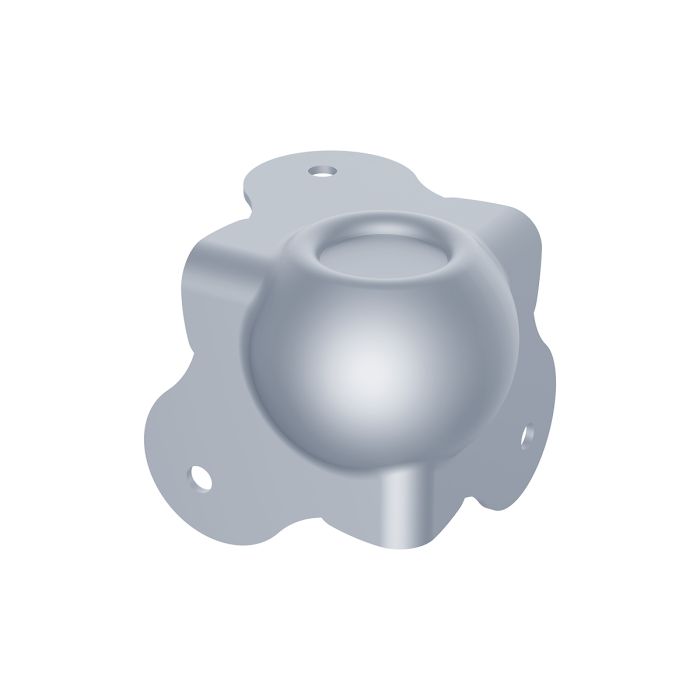

Large PennBrite Zinc Female Stackable Ball Corner with Wide Radius

Mounting Holes: 3
Internal Radius: 1/32"

Mates with C1352/00/R5 Large PennBrite Zinc Ball Corner with Wide Radius

Technical Information

Technical Information

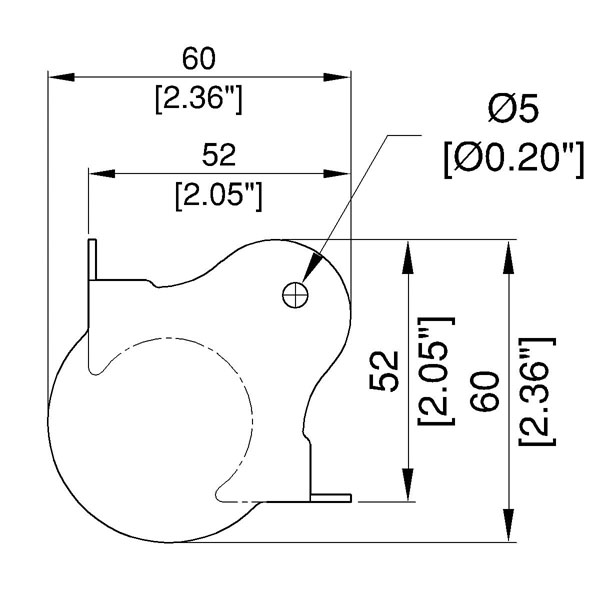

3D Model	View 3D Drawing
Mounting Holes	3
Number of Legs	3
Internal Radius	5mm / 13/64"
Material	1.5mm Steel / 1/16"
Stackable	Female
Weight	76g
Finish	Zinc

Q&A

Customer Questions

Did you find what you were looking for?

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

You're reviewing:Large PennBrite Female Stackable Ball Corner with 1/32" Radius

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Enquire about this product

For price, stock availability and other information about this product, please contact us using the form below.

View All Large Ball Corners

View All Corners

View All Flight Case Hardware

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Finish	Offset	Stackable	Mounting Holes	Internal Radius	Number of Legs
C1353/00/R5 Price: Finish: Zinc Offset: Stackable: Female Mounting Holes: 3 Internal Radius: 5mm / 13/64" Number of Legs: 3 Drawing:	Zinc		Female	3	5mm / 13/64"	3
C1352/00/R5 Price: Finish: Zinc Offset: Stackable: Mounting Holes: 3 Internal Radius: 5mm / 13/64" Number of Legs: 3 Drawing:	Zinc			3	5mm / 13/64"	3
C1351/01/R5Z Price: Finish: Zinc Offset: 30mm / 1 3/16" Stackable: Female Mounting Holes: 3 Internal Radius: 5mm / 13/64" Number of Legs: 3 Drawing:	Zinc	30mm / 1 3/16"	Female	3	5mm / 13/64"	3
C1351/00/R5Z Price: Finish: Zinc Offset: 30mm / 1 3/16" Stackable: Mounting Holes: 3 Internal Radius: 5mm / 13/64" Number of Legs: 3 Drawing:	Zinc	30mm / 1 3/16"		3	5mm / 13/64"	3
C1351/00/R5K Price: Finish: Black Offset: 30mm / 1 3/16" Stackable: Mounting Holes: 3 Internal Radius: 5mm / 13/64" Number of Legs: 3 Drawing:	Black	30mm / 1 3/16"		3	5mm / 13/64"	3

Large PennBrite Female Stackable Ball Corner with 1/32" Radius

FULL RANGE - Large Ball Corners with 5mm Radius
