Large Overlatch in Shallow Offset Dish - 2 7/16" Blade

Be the first to review this product

Part No

L0747/64

CA$17.65

In stock

Description

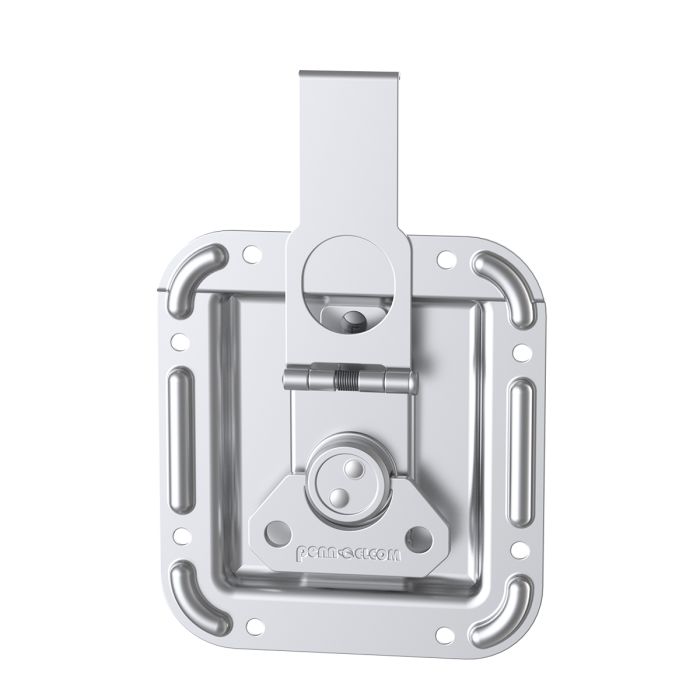

Large PennBrite Zinc Recessed Valance Spanning Overlatch in 3/8" Deep Shallow Dish with Offset.

Hook Length from Offset: 2 7/16"

Use Catch Plate L0965/CP or L0747/CP (Catch Plate Not Included)

Use Backplate L0747/BP

Technical Information

Technical Information
3D Model	View 3D Drawing
Dish Depth	10mm / 25/64"
Offset	Edge Offset
Mounting Holes	8
Material	1.2mm Steel / 3/64"
Type	L0747 Series
Weight	300g
Hook Length from Offset	62.3mm / 2 29/64"
Finish	Zinc

Q&A

Customer Questions

Did you find what you were looking for?

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

You're reviewing:Large Overlatch in Shallow Offset Dish - 2 7/16" Blade

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

View All Overlatches

View All Latches

View All Flight Case Hardware

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Price	Finish	Hook Length from Offset	Offset	Dish Depth
L0747/38K Price: Finish: Black Hook Length from Offset: 36.9mm / 1 29/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:		Black	36.9mm / 1 29/64"	Edge Offset	10mm / 25/64"
L0747/79K Price: Finish: Black Hook Length from Offset: 77.5mm / 3 3/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:		Black	77.5mm / 3 3/64"	Edge Offset	10mm / 25/64"
L0747/28 Price: Finish: Zinc Hook Length from Offset: 26.8mm / 1 1/16" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:		Zinc	26.8mm / 1 1/16"	Edge Offset	10mm / 25/64"
L0747/32 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 30.8mm / 1 7/32" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	30.8mm / 1 7/32"	Edge Offset	10mm / 25/64"
L0747/38 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 36.9mm / 1 29/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	36.9mm / 1 29/64"	Edge Offset	10mm / 25/64"
L0747/43 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 41.7mm / 1 41/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	41.7mm / 1 41/64"	Edge Offset	10mm / 25/64"
L0747/46 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 44.7mm / 1 49/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	44.7mm / 1 49/64"	Edge Offset	10mm / 25/64"
L0747/50 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 48.8mm / 1 59/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	48.8mm / 1 59/64"	Edge Offset	10mm / 25/64"
L0747/54 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 52.9mm / 2 5/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	52.9mm / 2 5/64"	Edge Offset	10mm / 25/64"
L0747/57 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 55.9mm / 2 13/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	55.9mm / 2 13/64"	Edge Offset	10mm / 25/64"
L0747/62 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 60.7mm / 2 25/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	60.7mm / 2 25/64"	Edge Offset	10mm / 25/64"
L0747/64 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 62.3mm / 2 29/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	62.3mm / 2 29/64"	Edge Offset	10mm / 25/64"
L0747/68 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 66.3mm / 2 39/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	66.3mm / 2 39/64"	Edge Offset	10mm / 25/64"
L0747/79 Price: CA$17.65 Finish: Zinc Hook Length from Offset: 77.5mm / 3 3/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:	CA$17.65	Zinc	77.5mm / 3 3/64"	Edge Offset	10mm / 25/64"
L0747/64K Price: Finish: Black Hook Length from Offset: 62.3mm / 2 29/64" Offset: Edge Offset Dish Depth: 10mm / 25/64" Drawing:		Black	62.3mm / 2 29/64"	Edge Offset	10mm / 25/64"

Large Overlatch in Shallow Offset Dish - 2 7/16" Blade

FULL RANGE - Large Recessed Valance Spanning Overlatches in Shallow Dish with Offset
