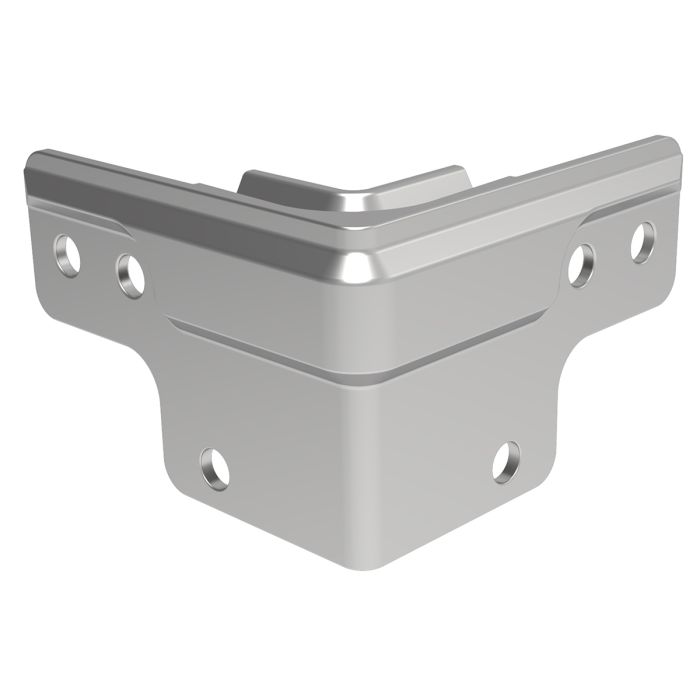

FW20 Female QuickClamp Corner Brace for 3/8" Panels

Be the first to review this product

Part No

FW20

CA$5.71

In stock

Description

Female Heavy Duty Die-Cast Corner Braces with New Quickclamp™ Interlocking System for use with 3/8" Panels.

Mates with FW20B Male QuickClamp™ Corner Brace.
For use with E0825-4M Hybrid Extrusion.

These interlocking corner braces create a seamless transition between the tongue and groove extrusion and the corner brace, effectively eliminating the need for costly miter cutting.

Technical Information

Technical Information
3D Model	View 3D Drawing
Panel Thickness	9mm / 23/64"
Material	Die Cast Steel
Weight	90g
Finish	Zinc
Gender	Female

Q&A (1)

Customer Questions

What's the appropriate rivet for fastening FW20 to edge extrusion and panel?

Thank you for your enquiry, Either the S0730 or S0735 are suitable for these braces Kind Regards Penn Elcom

Did you find what you were looking for?

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

You're reviewing:FW20 Female QuickClamp Corner Brace for 3/8" Panels

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

View All QuickClamp™ Corner Braces

View All Braces

View All Flight Case Hardware

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Drawing	Price	Finish	Gender	Panel Thickness	Quantity/Add to Cart
FW20 Price: CA$5.71 Finish: Zinc Gender: Female Panel Thickness: 9mm / 23/64" Drawing:		CA$5.71	Zinc	Female	9mm / 23/64"
FW20B Price: CA$5.71 Finish: Zinc Gender: Male Panel Thickness: 9mm / 23/64" Drawing:		CA$5.71	Zinc	Male	9mm / 23/64"
