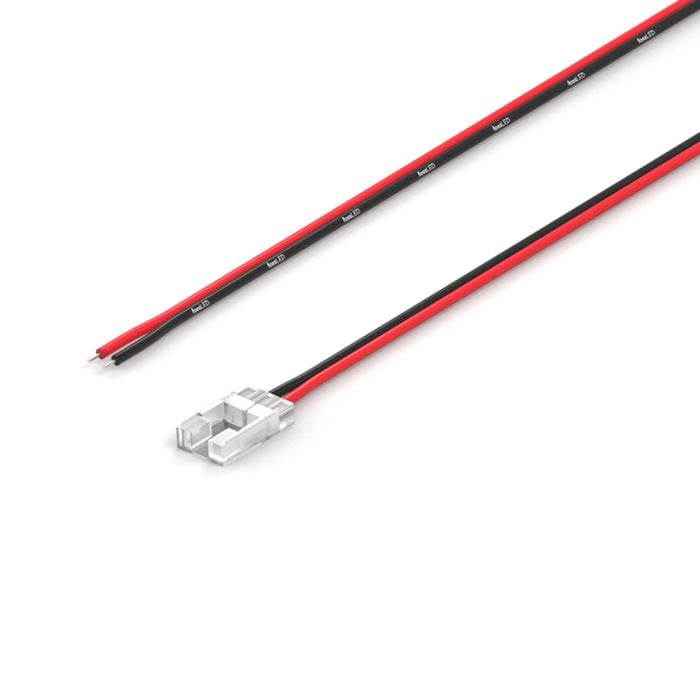

1m strip-to-driver connector for 8mm COB strips FLSW8SML

FLSW8SML



The FossLED innovative Mini connectors are compatible with all single colour
8mm strips and designed to fit into even the slimmest aluminium extrusions.

These New Feed connectors are used to create a new run; simply insert the strip
into the corresponding terminals and crimp with pliers to pierce PCB components
for a secure finish. Do note that once crimped down, they are not designed to
be re-used.

Long nose or small nose pliers will work. Does not require too much pressure
applied.

Pre-Flexed with a 1m lead (Red & Black)



Use with the 5W COB FossLED strips in 2700K Warm White or 4000K
Cool/Neutral White. Can feed a full 5m reel.

Product benefits

Reduced installation time

Can be connected to the front of the module or at cutting points

Clear housing, allows light to shine thru it avoiding dark ends



Product Specification

Compatible Strips: ECO / COB

Strip PCB Width: 8mm

Voltage Range (DC): 3~24V

Max Load Rating (@ 24V): 96W

Max Current Rating: 4A

Wire Gauge: 2 x 0.52sqmm

Wire Length: 1000mm

Dimensions (connector): L15.6 x W9.6 x H3.3mm

Product weight: 16 g

Reusable: No

IP Rating: IP20



Logistical data

Commodity code: 8536699099
