118" Long Shallow Surface Mounted Aluminum Extrusion

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL06A3M - 3M anodized aluminum extrusion
LEDAL06MC3M - 3M milky cover
LEDAL06EC - End Cap without hole
LEDAL06ECH - End Cap with hole for cable entry
LEDAL06MB - 6 x mounting brackets

Features:

+ Aluminum anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection.

Advantages:

+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application Areas:

+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other Options Available:

LEDAL06 - 1M grey anodized aluminum KIT
LEDAL06M2 - 2M grey anodized aluminum KIT
LEDAL06B - 1M black KIT
LEDAL06M2B - 2M black KIT
LEDAL06W - 1M white KIT
LEDAL06M2W - 2M white KIT

Suitable for LED strips not wider than 11mm.

Height (with cover): 7.15 mm
Height (without cover): 6 mm
Length: 3000 mm
Material: 6063 anodized aluminum
Warranty: 1 Yr
Width (Internal): 11.2 mm
Width (External): 15.9 mm
Base thickness: 1.1 mm
Cover material: PC
Cover assembly method: Clip-in from above

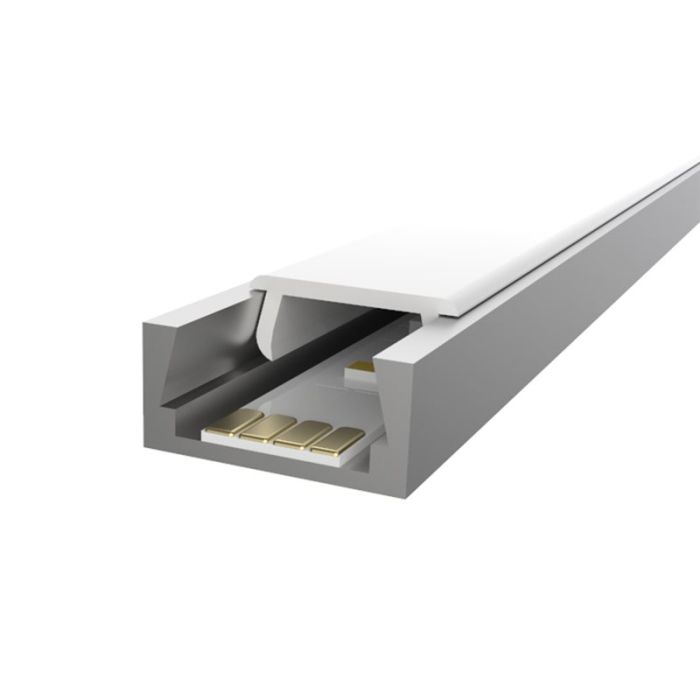

LED shown in images for illustration purposes and is not included in profile
