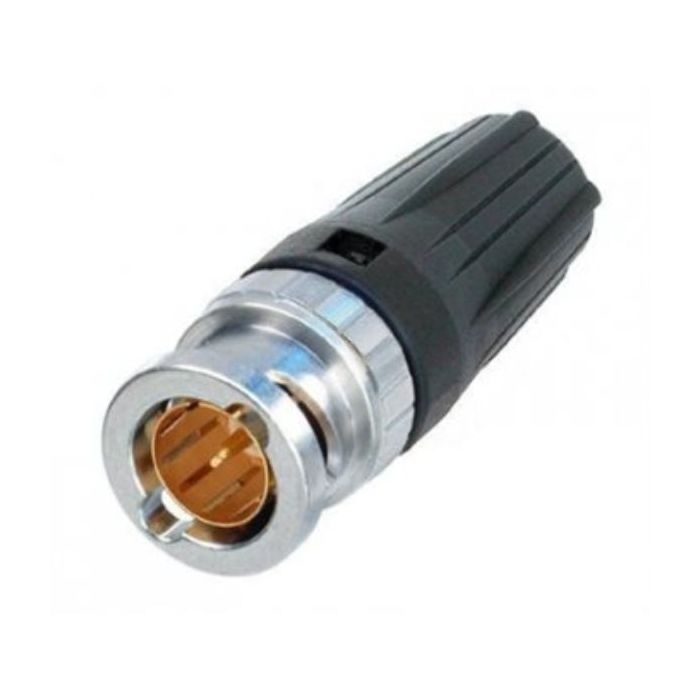

BNC Rear Twist Cable Connector NBNC75BRU11
Neutrik
Part No
CONBNC75BRU11
£3.46
£2.88
In stock
BNC Rear Twist Cable Connector
Technical Specifications:
- Connection Type: BNC 75 O
- Gender: male
- Contact resistance: =< 3 mO (inner) (inner)
- Comment: =< 2
- Dielectric strength: 1,5 kVdc
- Impedance: 75 O
- Insulation resistance: > 5 GO
- Rated voltage: <50 V
- VSWR: =< 1.050/>32 dB up to 1 GHz, =< 1.065/>30 dB up to 2 GHz, =< 1.100/>26 dB up to 3 Ghzl
- Cable O.D.: <8 mm
- Cable retention: > 30 N (Center)
- Crimp Mass: 7,36 Hex crimp (shield) acc. MIL22520/5-41(A)
- Crimp size: 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonett
- Cable anchoring: Jacket crimping
- Contacts: Brass (CuZn35Pb2), 0.2 �m AuCo (Center contact)
- Insert: PTFE
- Shell: Brass (CuZn39Pb3)
- Shell plating: Optalloy�
- Standard compliance: IEC 6016908, MIL 348A
- Temperature range: -30 �C to +85 �C
- Contact crimpability: Complies with IEC 60803 and IEC 60352-2
The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1694F, Kabeltronik HFV 1.0/4.8 AF- FRNC
Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features & Benefits:
- RearTWIST Principle locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the head of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 O design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Technical Specifications:
- Connection Type: BNC 75 O
- Gender: male
- Contact resistance: =< 3 mO (inner) (inner)
- Comment: =< 2
- Dielectric strength: 1,5 kVdc
- Impedance: 75 O
- Insulation resistance: > 5 GO
- Rated voltage: <50 V
- VSWR: =< 1.050/>32 dB up to 1 GHz, =< 1.065/>30 dB up to 2 GHz, =< 1.100/>26 dB up to 3 Ghzl
- Cable O.D.: <8 mm
- Cable retention: > 30 N (Center)
- Crimp Mass: 7,36 Hex crimp (shield) acc. MIL22520/5-41(A)
- Crimp size: 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonett
- Cable anchoring: Jacket crimping
- Contacts: Brass (CuZn35Pb2), 0.2 �m AuCo (Center contact)
- Insert: PTFE
- Shell: Brass (CuZn39Pb3)
- Shell plating: Optalloy�
- Standard compliance: IEC 6016908, MIL 348A
- Temperature range: -30 �C to +85 �C
- Contact crimpability: Complies with IEC 60803 and IEC 60352-2
The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1694F, Kabeltronik HFV 1.0/4.8 AF- FRNC
Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features & Benefits:
- RearTWIST Principle locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the head of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 O design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
| Weight | 40g |
|---|
