BNC Cable Cable Rear Twist NBNC75BDD6
Neutrik
Part No
CONBNC75BDD6
£3.46
£2.88
In stock

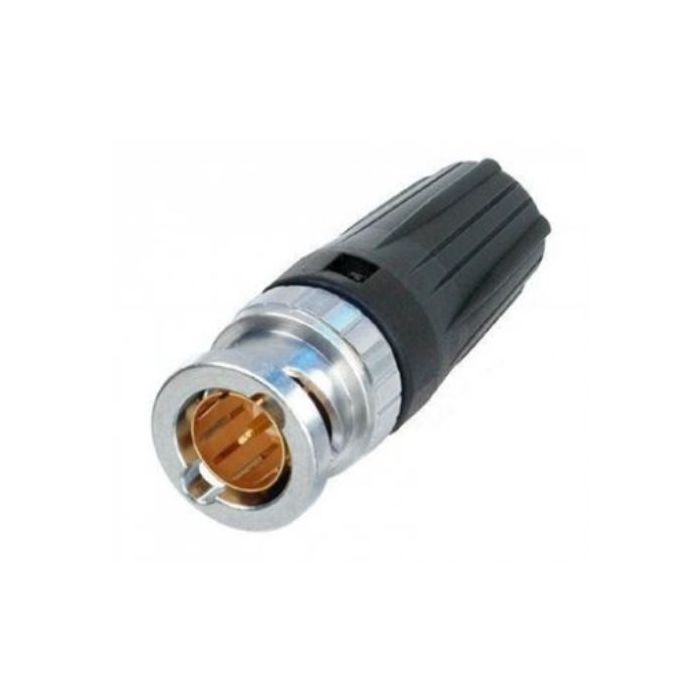

BNC Cable Cable Rear Twist
The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1855A, CommScope 7538
Crimp Size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)
Features & Benefits:
- RearTwist Principe locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507).
- Ideal for recessed bulkheads where access to the head of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 O design meets the stringent HD requirements.
- Snug-fit center pin assembly provides tactile feedback.
- Excellent cable protection and retention.
- Precise machined brass parts for outstanding durability.
- Accessories include color coded boots in 10 standard colors, crimp tool and dies.
Priced per connector: available in any quantity
Packing information: Box quantity = 100
The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1855A, CommScope 7538
Crimp size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)
The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1855A, CommScope 7538
Crimp Size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)
Features & Benefits:
- RearTwist Principe locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507).
- Ideal for recessed bulkheads where access to the head of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 O design meets the stringent HD requirements.
- Snug-fit center pin assembly provides tactile feedback.
- Excellent cable protection and retention.
- Precise machined brass parts for outstanding durability.
- Accessories include color coded boots in 10 standard colors, crimp tool and dies.
Priced per connector: available in any quantity
Packing information: Box quantity = 100
The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1855A, CommScope 7538
Crimp size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)
| Weight | 40g |
|---|
