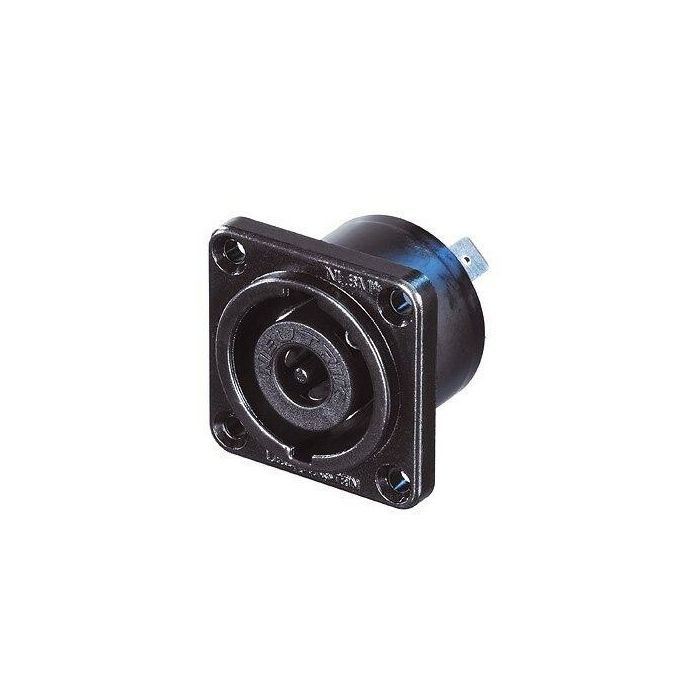

SpeakON STX Male Black 8 Pole Chassis IP50 NLT8MP-BAG

Part No
CONLT8MPBAG
A$33.36
In stock
SpeakON STX Male Black 8 Pole Chassis SpeakON 8-pole male chassis connector, black-chrome metal housing, solder or +in flat tabs.Square G size flange.

The new STX Series is the next generation of 8 pole SpeakON connectors especially designed for heavy duty amplifier-loudspeaker applications like professional tour sound. The extremely rugged and durable STX Series feature an all metal housing and metal reinforced latch lock system.

Features & Benefits:
 - Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
 - Robust and durable all metal housing
 - Reinforced metal quick lock system for ease and precise locking
 - Mate with all available Speakon® products

Technical Specifications:
 - Rated current per contact: 40 A RMS continuous
 - Rated current per contact: 50 A audio signal, duty cycle 50 %
 - Dielectric strength: 4kV peak
 - Rated voltage: 250 V (Insulation)
 - Wiring: flat tabs for 1/4in (FASTON 6.3 x 0.8 mm) or soldering
 - Wire size: 6 mm
 - Wire size: 10 AWG
 - Wiring: solder contacts
 - Shell: Zinc die cast (ZnAl4Cu1)
 - Protection class: IP 50 (mated condition)

Priced per connector.

Packing information: Box quantity = 50
Technical Information
Pole 8
Termination Solder or ¼" flat tabs
Weight 40g
Chassis Square G-size flange
Finish Black chrome
