9.5mm Film Faced High Quality Birch with Black Hexa Pattern

Be the first to review this product

Part No

M847111

£81.83 £68.19

In stock

Description

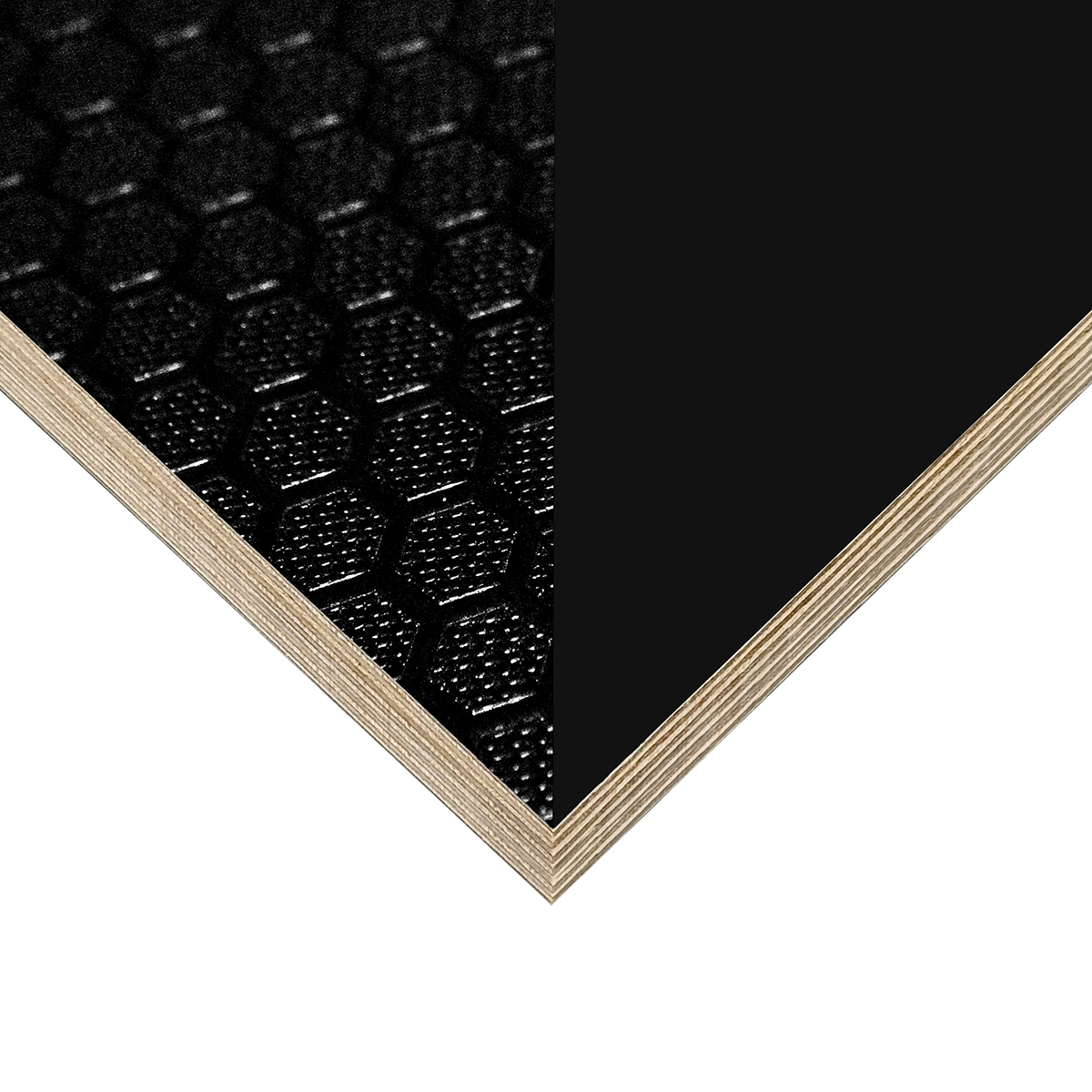

9.5mm Film Faced High Quality Birch Plywood with Matt Black Hexa Pattern Phenolic

- One Side: 185gsm Matt Black Hexa Pattern Phenolic
- One Side: 185gsm Matt Black Smooth Phenolic
- Edges Sealed With Black Paint

Width: 1220mm
Length: 2440mm
Nominal Thickness: 9.5mm

Finish: Black

Pattern: Hexagonal Pattern

Technical Information

Technical Information
Data Sheet	HEXA Phenolic Laminated Panels
Texture	Hexa / Smooth
Nominal Thickness	9.5mm
Wood	Birch Plywood
Weight	20kg
Laminate	Phenolic
Finish	Black

Q&A (3)

Customer Questions

How much does this 8x4 sheet weight? To understand it correctly one side has smooth laminate finish and other has hexa patern laminate finish? Thanks

Thank you for your enquiry, The weight of this M847111 board is 20kg / 44.09lbs, One side has hex pattern the other is smooth black Regards Penn Elcom

Two questions please 1 Is this 9mm product suitable for a small trailer floor, approx size 1600mm x 1250mm. What is thw load bearing capability. 2 If the board is cut to size how should the edges be treated. Many thanks Terry Marsh

Thank you for your enquiry, Without seeing how you intend to use this M847111 it would be difficult to advise. Please send us images of how you intend to use the product and we will try to assist. Alternatively please feel free to call us and...

Is this wood fsc (Forest Stewardship Council) approved?

Thank you for your enquiry, We can confirm that our wood is FSC Approved Kind Regards PennElcomOnline

Did you find what you were looking for?

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

View All Film Faced Panels

View All Panels and Laminates

View All Flight Case Hardware

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Price	Finish	Laminate	Nominal Thickness	Wood	Texture
M847111 Price: £81.83 £68.19 Finish: Black Laminate: Phenolic Nominal Thickness: 9.5mm Wood: Birch Plywood Texture: Hexa / Smooth Drawing:	£81.83 £68.19	Black	Phenolic	9.5mm	Birch Plywood	Hexa / Smooth
M847113 Price: £100.36 £83.63 Finish: Black Laminate: Phenolic Nominal Thickness: 12mm Wood: Birch Plywood Texture: Hexa / Smooth Drawing:	£100.36 £83.63	Black	Phenolic	12mm	Birch Plywood	Hexa / Smooth
M847108 Price: £62.87 £52.39 Finish: Black Laminate: Phenolic Nominal Thickness: 6.5mm Wood: Birch Plywood Texture: Hexa / Smooth Drawing:	£62.87 £52.39	Black	Phenolic	6.5mm	Birch Plywood	Hexa / Smooth
M847211 Price: £81.83 £68.19 Finish: Blue / Black Laminate: Phenolic Nominal Thickness: 9.5mm Wood: Birch Plywood Texture: Hexa / Smooth Drawing:	£81.83 £68.19	Blue / Black	Phenolic	9.5mm	Birch Plywood	Hexa / Smooth
M847213 Price: Finish: Blue / Black Laminate: Phenolic Nominal Thickness: 12mm Wood: Birch Plywood Texture: Hexa / Smooth Drawing:		Blue / Black	Phenolic	12mm	Birch Plywood	Hexa / Smooth
