2U 32Amp Two Channel Rack Mount PDU with Power Monitoring - PowerCon Input
Part No
PDU32-PC
£342.30
£285.25
In stock
2U 19” Rack Mount Power Monitoring Distribution Unit. 32 Amp Input – 2x Banks on 16 Amp Outputs.
The PDU has 32A input breaking out on two banks, with four PowerCon connectors each bank with 16 Amp thermal breakers all with Power Monitoring. Tailor made for Audio Visual, Theatre Multimedia & Touring rack applications.
Input: 32 Amp 240v PowerCon Single Phase Robust Connector, NAC3MP-HC

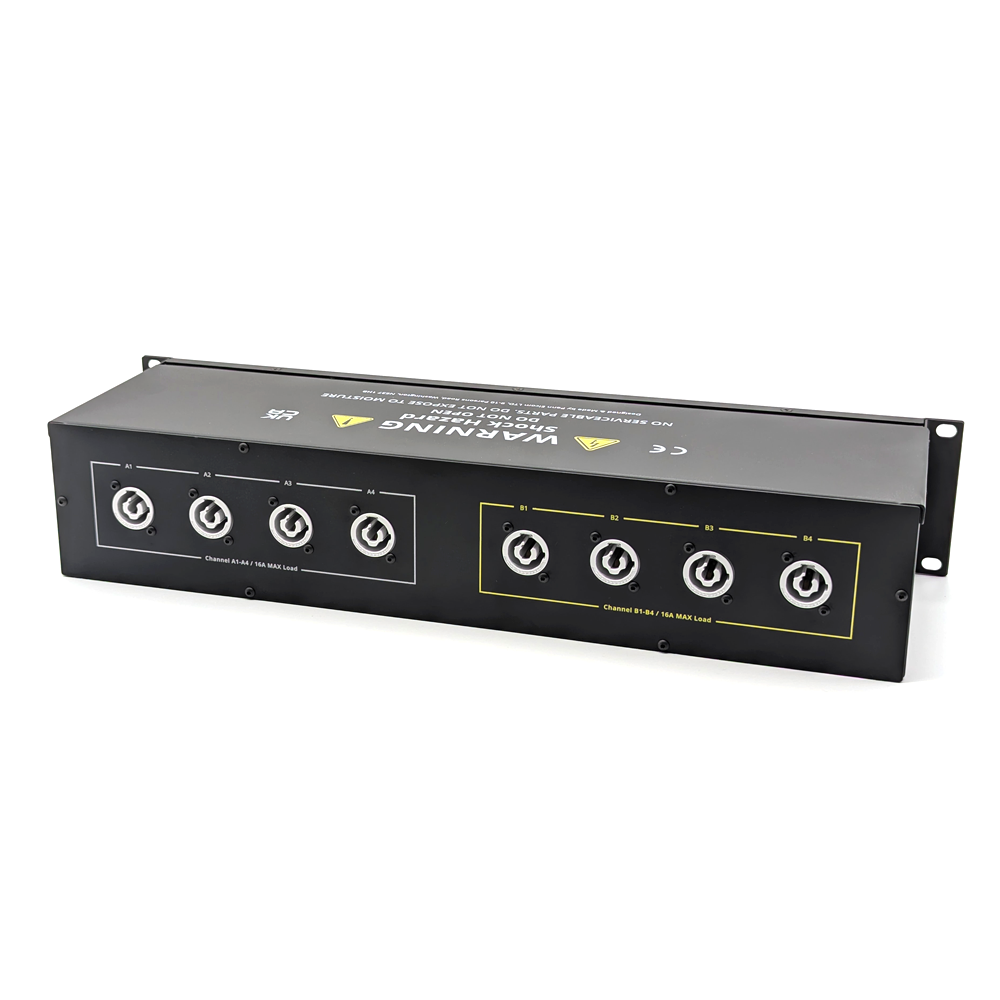

Channel / Circuit A Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXA on 16 Amp Overload protection.
Channel / Circuit B Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXA on 16 Amp Overload protection.
Also Includes:

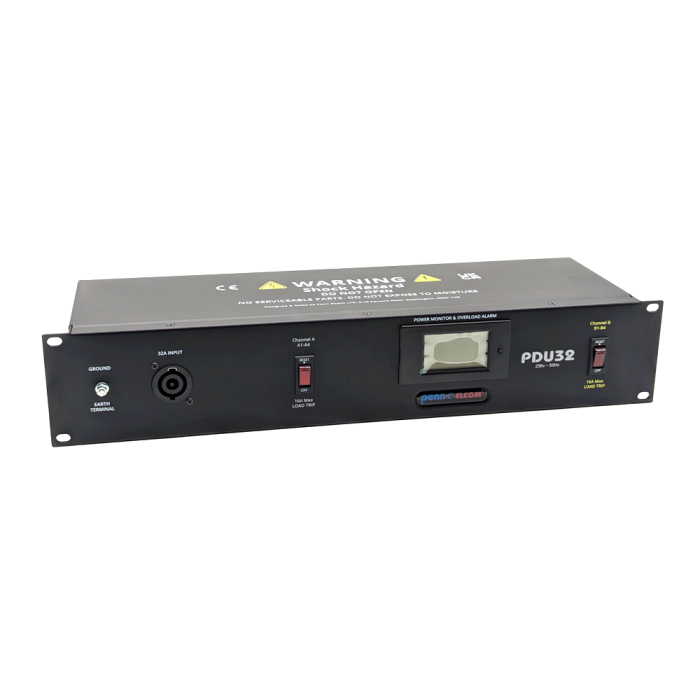

- LCD Power Monitor that will display Current, Voltage, Power & Energy Levels.
- Two separate 16 Amp thermal breaker switches one on each bank of 4 outputs.
- Earthing Link, 4mm Screw terminal for Grounding Purposes.
- Colour coded channels, A (grey) & B (yellow) for easy identification.
| Number of Sockets | 8 |
|---|---|
| Plug Type | powerCON |
| Size (U) | 2U |
| Weight | 2.69kg |
| Finish | Black |
