| Part Number | Quantity |
|---|---|

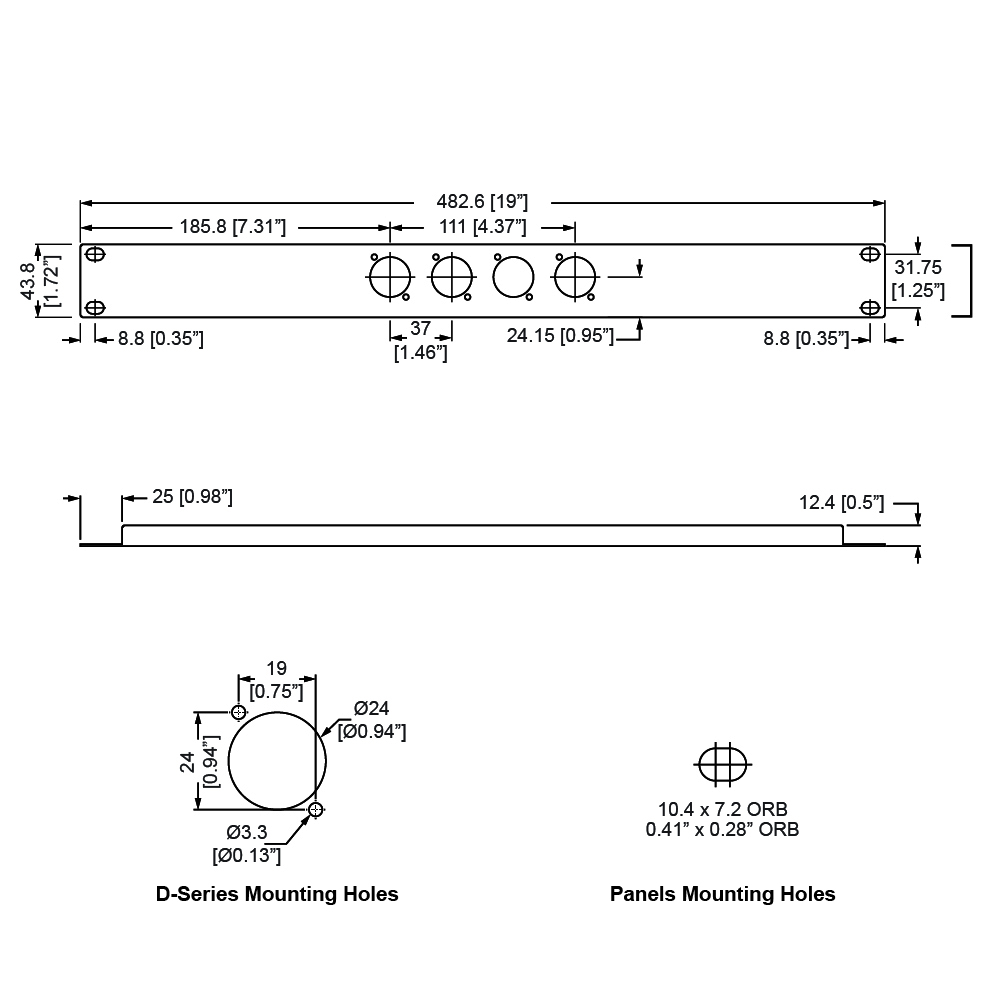

| R1269/1U/04-NL4 | |
| R1269/1U/04-PCL | |
| R1269/1U/04-FMX | |

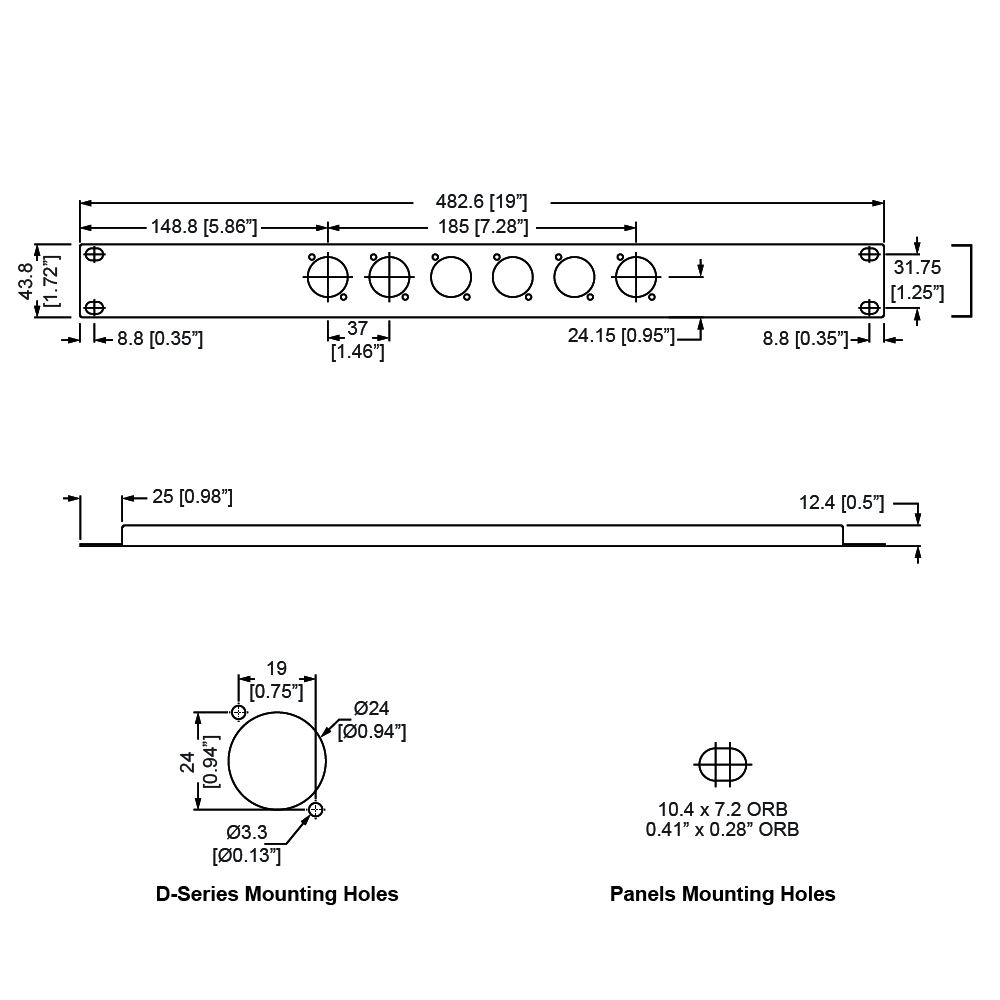

| R1269/1UK/06-FMXS | |
| R1269/1UK/08-PCFMS | |
| R1269/1UK/08-FXS2 |

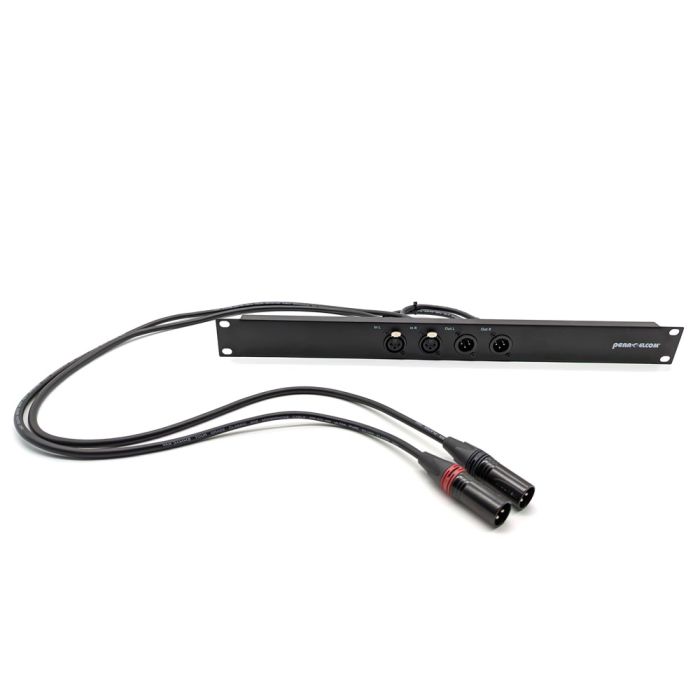

1U Four-Way Rack Panel with XLR Female/Male Link with 1m Tails
Part No
R1269/1U/04-FMX
£75.20
£62.67
In stock
1U Four-Way Rack Panel with 2 x 3-Pin MXLR Chassis Connectors to 2 x FXLR Chassis Connectors and 2 x MXLR In-line Connectors with 2 x 1m Tour Grade Microphone Tails.
A part of our loaded panel series, make it easy to install and mount essential equipment into your rack hardware, console, furniture, or equipment.
Set in a R1269/1UK/04 - 1U Rack Panel Punched for 4 x D-Series Connectors, the R1269/1U/04-FMX is the best choice for XLR access audio and lighting applications, offering reliable and robust connection for touring racks and AV installations.
This panel includes:
- 2 x CONC3MDLXBAG - Neutrik XLR 3 Pin Male Chassis DLX Black Body NC3MD-LX-BAG
- 2 x CONC3FDLXBAG - Neutrik XLR 3 Pin Female Chassis DLX Black Body NC3FD-LX-BAG
- 2 x CONC3MXXBAG - Neutrik Black Male XLR 3 Pin Cable NC3MXX-BAG
- 3 x CAMV65BK - 1m Van Damme Black Tour Grade Classic XKE Microphone Cable 268-020-000
- 4 x COMFD - M3 Mounting Frame for All D-Size Chassis MFD x 4
- 1 x COXXR2 - Neutrik Coloured Ring Red with ident for FXX/MXX XXR-2
- 8 x M3 Screws
CONC3MDLXBAG Features
- 3 pole male cable chassis with black metal housing and silver contacts
- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
Learn more on our dedicated product page.
CONC3FDLXBAG Features
- 3 pole female cable chassis with black metal housing and silver contacts
- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
Learn more on our dedicated product page.
CONC3MXXBAG Features
- 3 pole male cable connector with black metal housing and silver contacts
- The next generation of the worldwide-accepted standard of XLR cable connector.
- Male connector with improved locking recess without window, more stringent housing increases durability
Learn more on our dedicated product page.
CAMV65BK Features
- Best for broadcast, live sound, stage, and presentations for mic and line level analogue balanced audio.
- Tightly packed cotton fillers ensure no static build-up and even capacitance.
- Further improved outer jacket ensures cable remains flexible in sub-zero temperatures
Learn more on our dedicated product page.
| Number of Connectors | 4 |
|---|---|
| Material | 1.2mm Steel |
| Size (U) | 1U |
| Weight | 590g |
| Connectors | XLR 3-Pin |
| Finish | Black |
