1U Four-Way Rack Panel with Speaker Female/Male Link with 1m Tails

Be the first to review this product

Part No

R1269/1U/04-NL4

£101.92 £84.93

In stock

Description

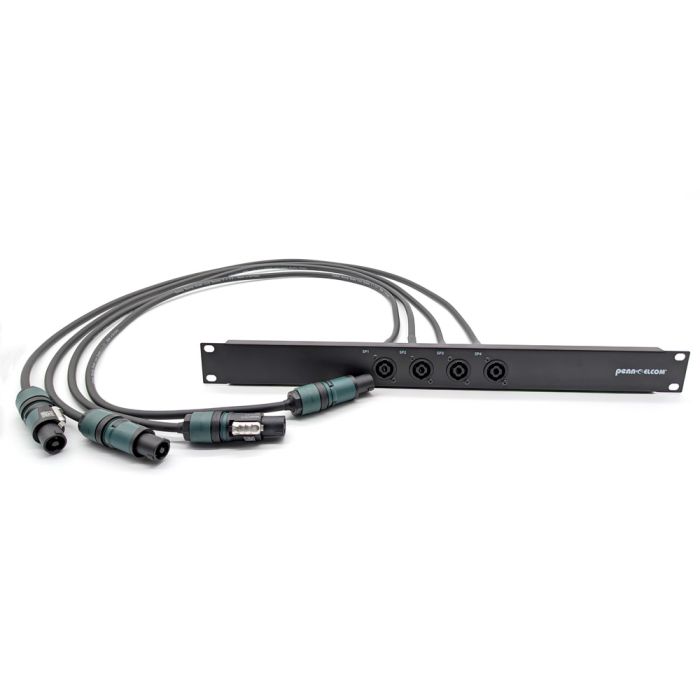

1U Four-Way Rack Panel with 4x SpeakON Chassis Connectors to 4 x SpeakON In-line Connectors with 4 x 1m Tour Grade Speaker Tails.

A part of our loaded panel series, make it easy to install and mount essential equipment into your rack hardware, console, furniture, or equipment.

Set in a R1269/1UK/04 - 1U Rack Panel Punched for 4 x D-Series Connectors, the R1269/1U/04-NL4 is the best choice for your loudspeaker or amplifier connections, offering reliable and robust connection for touring racks and AV installations.

This panel includes:

- 4 x CONL4MPXX - Neutrik SpeakON 2 Pole Chassis D Flange NL2MPXX
- 4 x CONL4FXXWS-D - Neutrik SpeakON 4 Pole Plug Cable 6-12mm NL4FXX-W-S
- 4x CASV254 - 1m Van Damme 4 Pair x 2.5mm Multicore Tour Grade Speaker Cable 268-542-000
- 4 x COMFD - M3 Mounting Frame for All D-Size Chassis MFD
- 8 x M3 Screws

CONL4MPXX Features

- 4 pole chassis connector

- Black D-size flange

- Countersunk thru holes

- 3/16" flat tabs

Learn more on our dedicated product page.

CONL4FXXWSD Features

- 4 pole speakON cable connector

- Screw terminal assembly

- Chuck-type strain relief for cable diameters 6 to 12 mm.

Learn more on our dedicated product page.

CASV254 Features

- 4 Core Cable - 4 x 2.50mm2

- Best for low-impedance speaker systems as well as presentations and live sound.

- Optimised for dynamic use, with core count and conductor size to accommodate almost all potential speaker signals.

Learn more on our dedicated product page.

Technical Information

Technical Information
Number of Connectors	4
Material	1.2mm Steel
Size (U)	1U
Weight	980g
Connectors	speakON
Finish	Black
