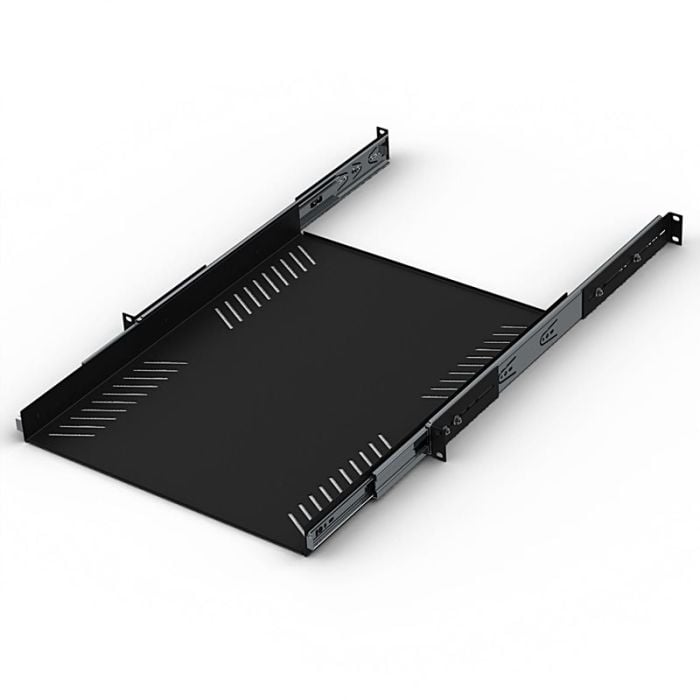

1U Black 560mm Deep Sliding Rack Tray with Universal Fixing

Be the first to review this product

Part No

R1290-600/1UK

£66.06 £55.05

In stock

Description

1U Black 560mm Deep Sliding Rack Tray with Universal Equipment Fixing Points.

Recommended Load Capacity 19Kg

Technical Information

Technical Information
3D Model	View 3D Drawing
Data Sheet	Drawings
Load Capacity	19kg
Material	1.2mm Steel
Weight	4.58kg
Depth	56cm
Finish	Black

Q&A (8)

Customer Questions

What is the R1290-600/1UK weight?

The weight of this product is 4.58kg / 10lbs.

Hi Can you tell me the width of the R1290-600/1UK draw please

The internal width of the tray is 417mm / 16.41 Inches

What is the amount of travel for this shelf?

This sliding rack shelf travels (slides out) 560mm / 22”. Thank you for your question! - The Penn Elcom Online Team

Can this be mounted in a rack with 33" depth?

Hi, Unfortunately this product (R1290-600/1UK) cannot reach a 33" / 838.2mm depth. The maximum distance that the front and rear brackets can be set to is 29" / 736.6mm. Regards Penn Elcom

Can it be mounted upside down to accomodate a console that is 17.5" wide and work normally?

Thank you for the question. Yes this R1290-600/1UK track tray can be mounted upside down to provide more surface area.

Does this product have a catch or latch to positively hold it in the closed position?

The R1290 rack trays have a soft close on the runners that hold the tray in position. It doesn't however operate as a hard close so if the tray is tipped/pulled it will release.

What is the minimum and maximum depth of the rails on the R1290-600/1UK?

Thank you for your enquiry, The minimum depth for the rails is 370mm / 14.5" maximum is 750mm / 29" Kind Regards Penn Elcom

What is the max weight this R1290-600/1UK shelf can support?

Thank you for your enquiry, The maximum load rating is 19kg / 41.89lbs Regards Penn Elcom
